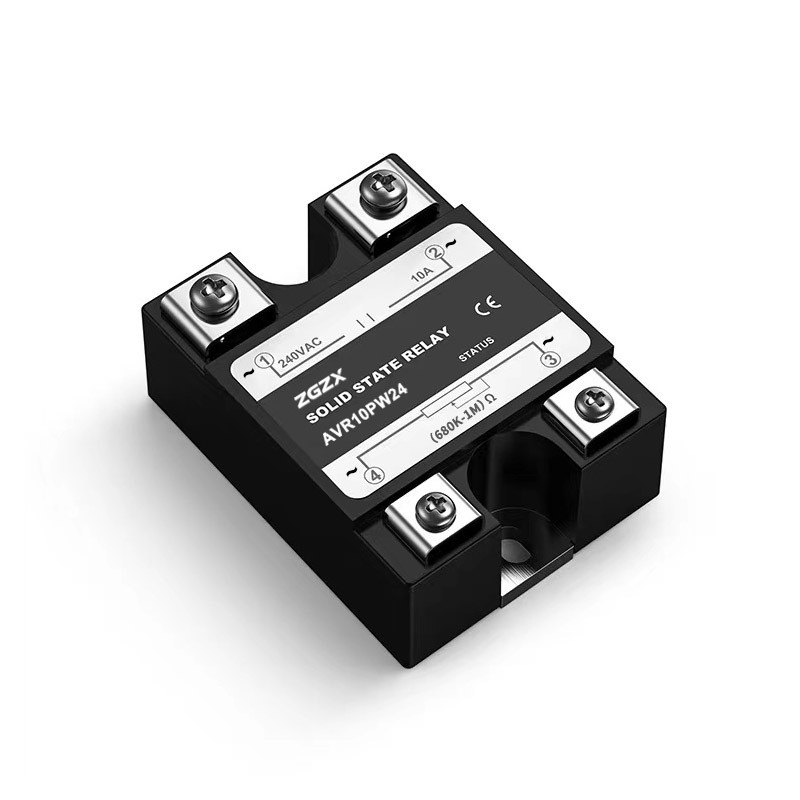

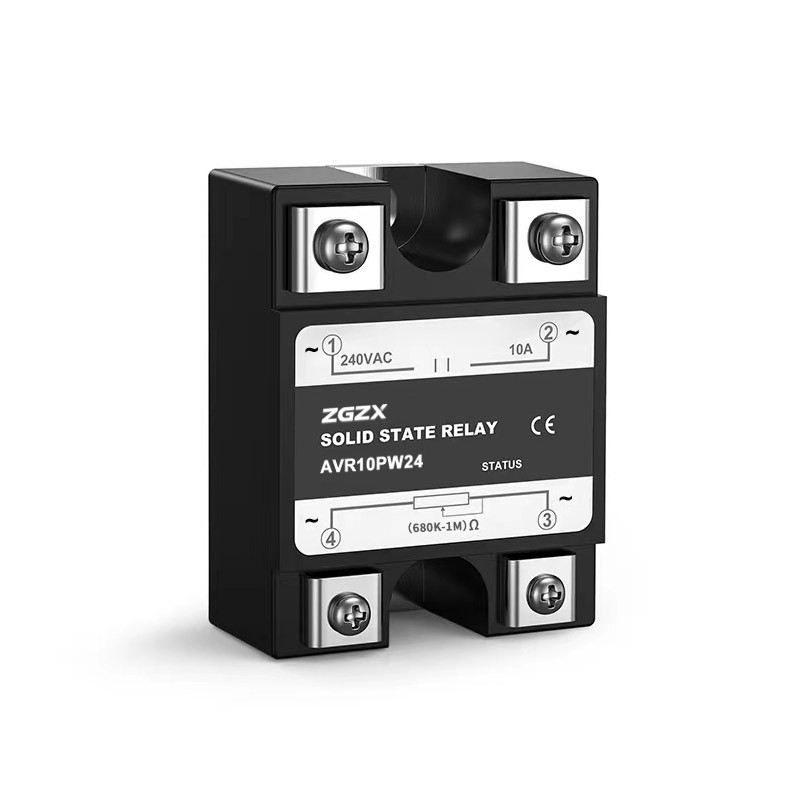

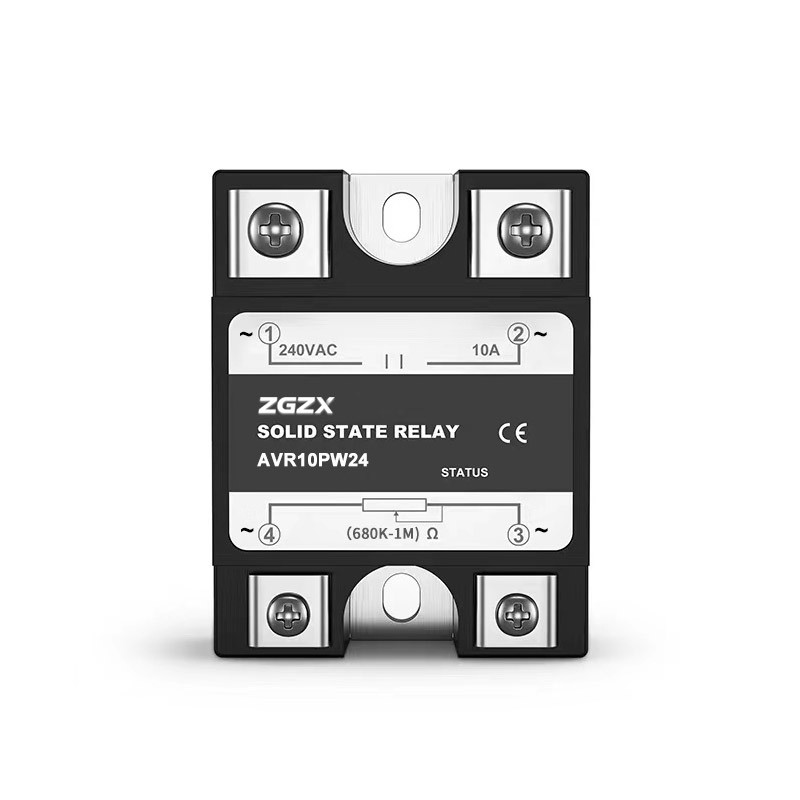

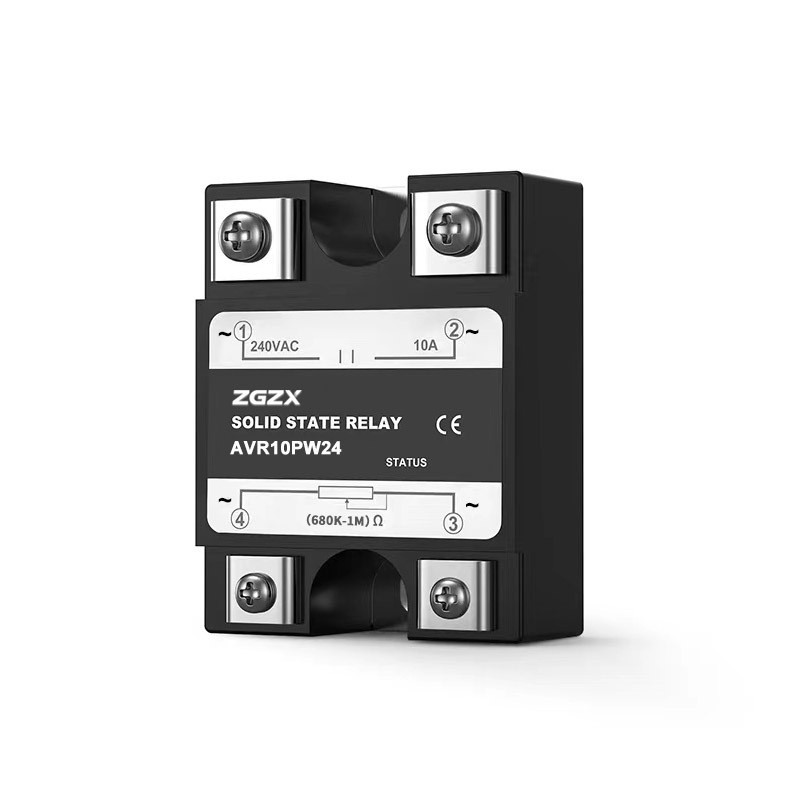

AVR Series Voltage Regulating Type Solid State Relay

• SCR phase-shift output, wide adjustment range.

• Built-in resistance-capacitance absorption circuit, surge absorption protection is more reliable.

• Internationally standardized installation dimensions.

• LEDs indicate operating status.

• Epoxy resin potting has strong anti-corrosion and anti- explosion ability.

• Flame retardant housing with protective cover.

• Simple to use, the output voltage can be adjusted by external potentiometer.

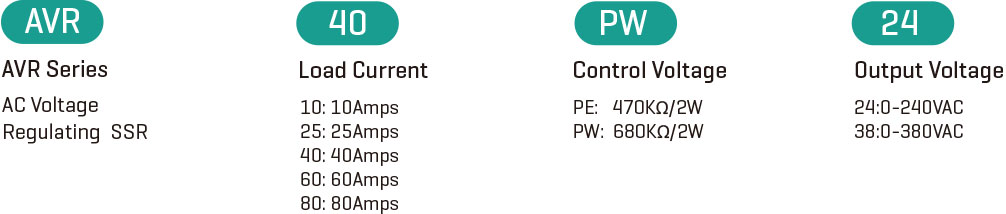

Ordering Options

Product Selection

Output voltage 220V

Output voltage 380V

Technical Parameter

project	unit	parameter value
load current	Arms	0.05-80A
External potentiometer	Ω	470K/2W or 680K/2W
Voltage adjustment range	V	0-220VAC or 0-380VAC
Minimum on-current	mA	50mA
Maximum on-state voltage drop	V	1.5VAC
Maximum off-state current	mA	5mA
On-off time	ms	≤10ms
working frequency	Hz	45-65Hz
Insulation resistance	MΩ	1000MΩ(500VDC)
Minimum isolation voltage	Vrms	2500
Minimum insulation voltage	Vrms	2500
Working temperature	°C	-30°C to +80°C

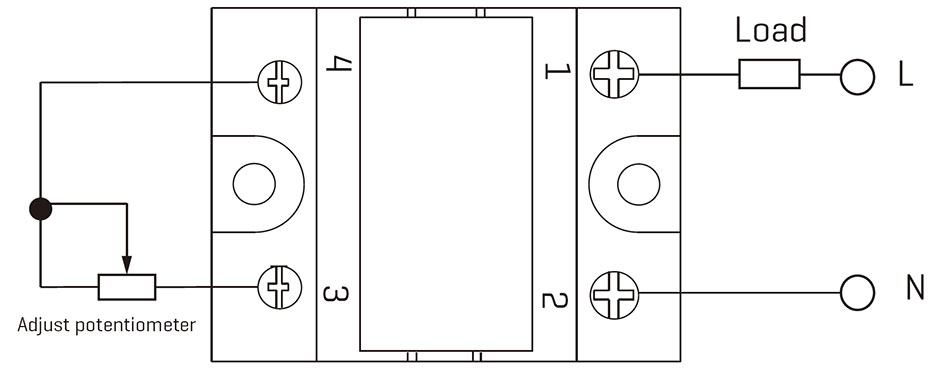

Connection Diagram

Dimensions
