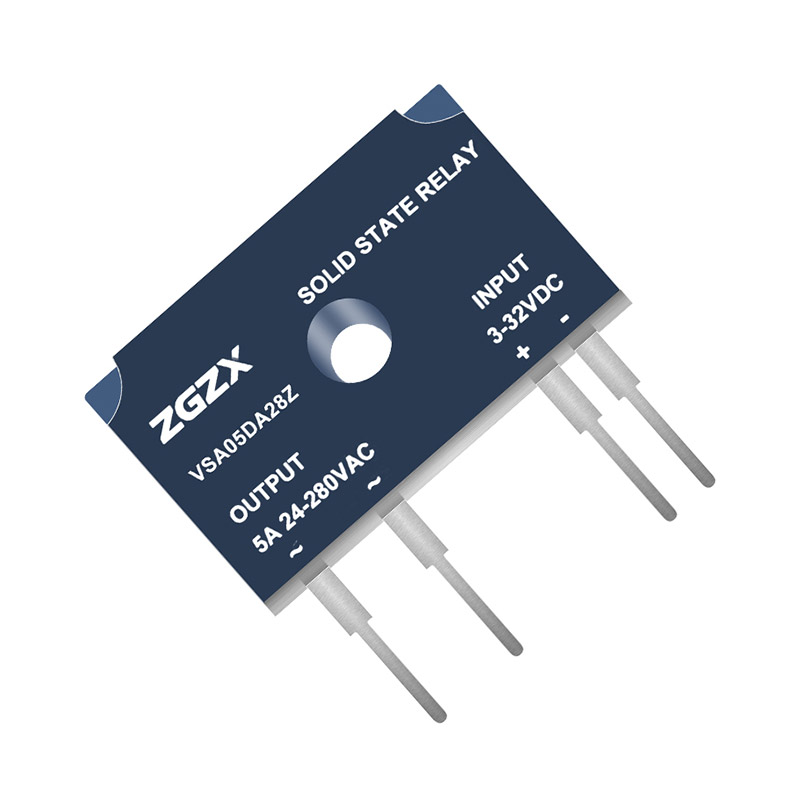

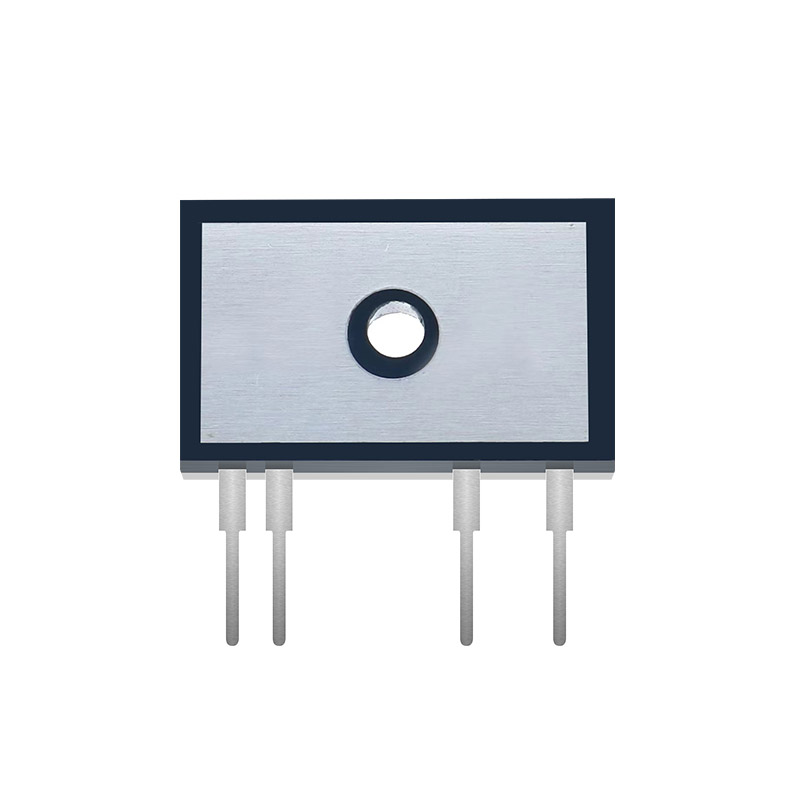

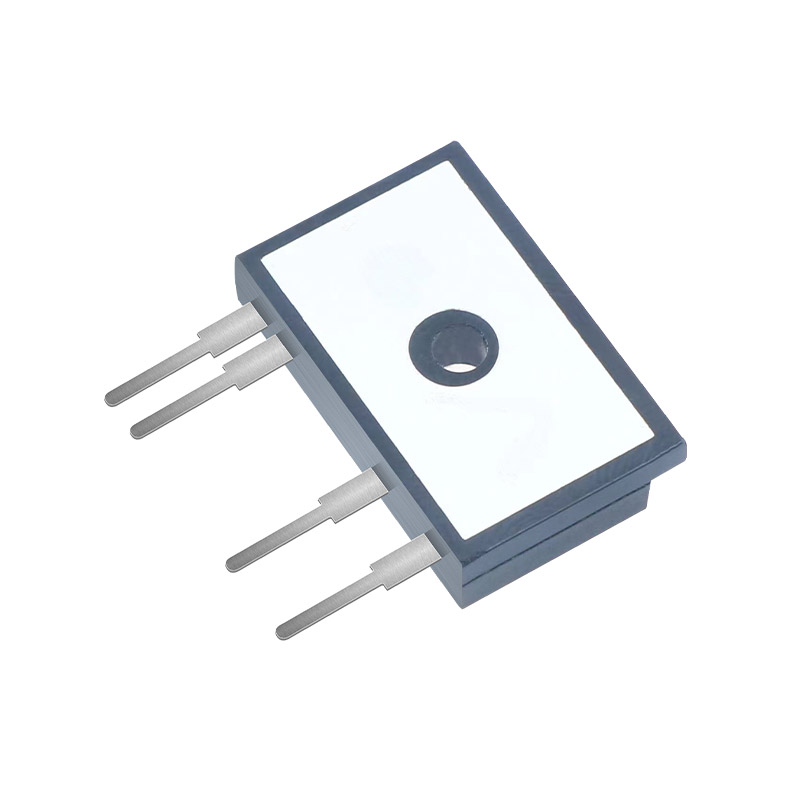

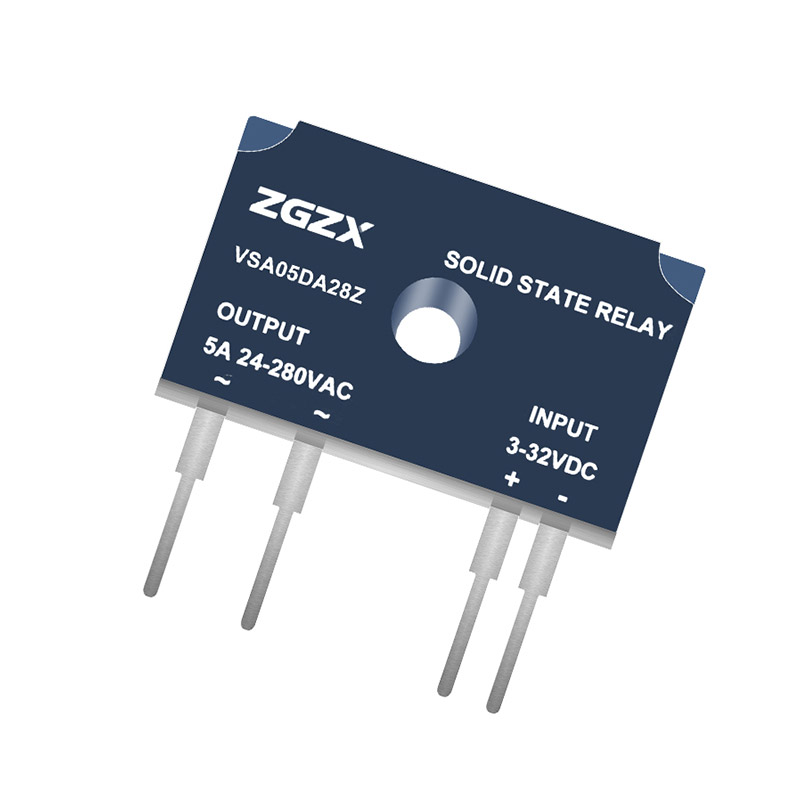

• 5A@ 24-280VAC

• Economical triac output load

• Zero voltage turn-on output

• 3-32VDC DC control

• High reliability plastic packaging process

View product introduction
I want to make an inquiryarrow Contact Support Staffarrow
Technical documentation
Ordering Options Product Selection Technical Parameter Connection Diagram Dimensions

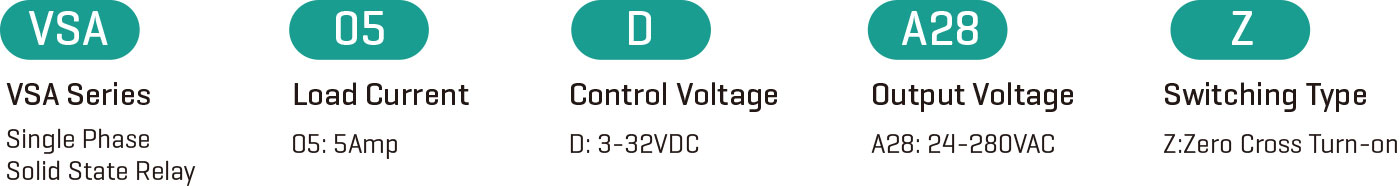

Ordering Options


Product Selection

Control voltage 3-32VDC


Rated Operational Current

Output Voltage

Zero-crossing Turn-on

5Amps

24-280VAC

VSA05DA28Z


Technical Parameter

Output specification

Description

VSA05DA28Z

Operating voltage (47-440Hz) ( V RSM )

24-280VAC

Transient Voltage ( V PK )

800

Maximum off-state leakage current @ rated voltage (mA)

1

Minimum off-state rise rate @ maximum rated voltage (V/μs)

500

Maximum load current (A)

5

Minimum load current (mA)

150

Maximum cycle surge current (50/60Hz) (A)

200

Maximum On-State Voltage Drop @ Rated Current ( V RMS )

1.5

Maximum I²t (50/60Hz) (A² sec)

200

Minimum power factor ( maximum load )

0.5


Inputspecification

Description

VSA05DA28Z

Control current range (mA)

≤7

Minimum turn-on voltage (V)

1.13

Guaranteed Shutdown Voltage (V)

1.0

Typical Input Current (mA)

5

Maximum input current (mA)

7

Maximum opening time (ms)

1/2 cycle

Maximum off time (ms)

1/2 cycle


General parameters

Description

Numerical value

Dielectric Strength ( input / output / backplane ) (50/60Hz) (V)

2000VDC(1min)

Minimum Insulation Resistance (@ 500VDC) (MΩ)

1000

Maximum Capacitance, Input / Output (pF)

10

Operating temperature range ( ℃ )

-40 ℃ ~80 ℃

Storage temperature range ( ℃ )

-40 ℃ ~125 ℃

Weight ( Typical ) (g)

About 3.8g

Humidity reference IEC60068-2-78

93% non-condensing

MTBF ( Mean Time Between Failures ) at 40 ℃ ambient temperature

11,641,553 hours ( 1,328 years )

MTBF ( Mean Time Between Failures ) at 60 ℃ ambient temperature

7,210,376 hours (823 years )


Connection Diagram

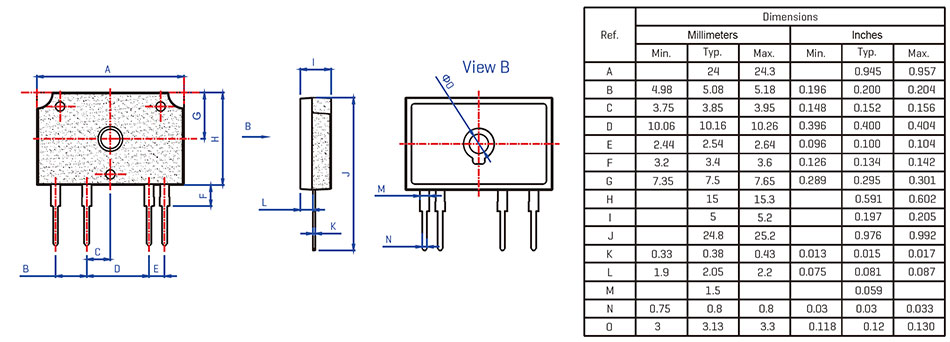

Dimensions
