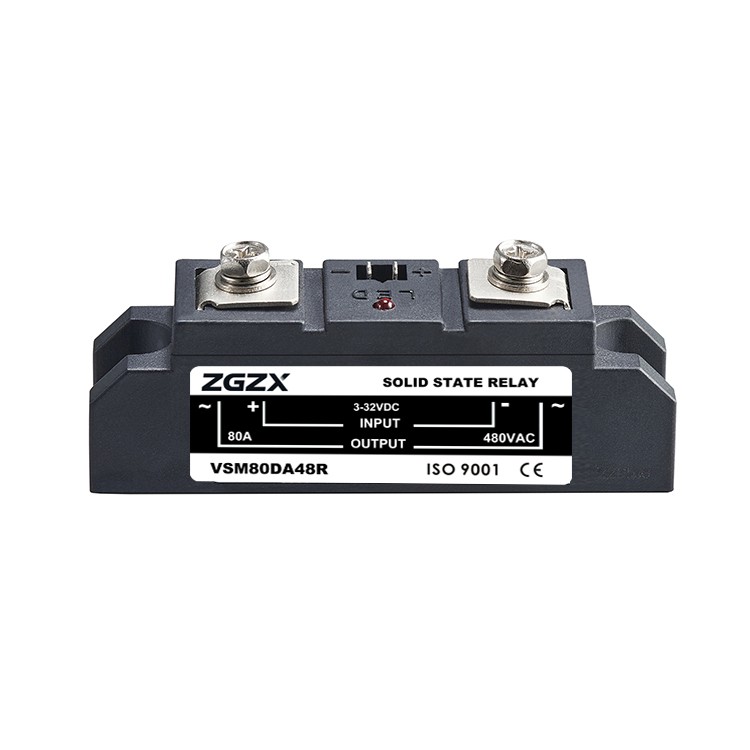

VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC
VSM series 60A-150A AC SSR, DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 60A-150A, output voltage 24-480VAC

 ▪ High power and high current.

 ▪ High performance/low cost circuit design.

 ▪ Logic compatible current regulated input.

 ▪ 4000 Vrms optical isolation.

 ▪ Both “Zero Voltage” & phase controllable “Random Switching” versions.

 ▪ High voltage (1200 Vpk) versions for 480 Vrms service.

 ▪ LED-indication for control input.

 ▪ Control voltage range: 3 to 32 Vdc or 90 to 280Vac

 ▪ Industy standard “SCR Modules” package.


View product introduction
I want to make an inquiryarrow Contact Support Staffarrow
Technical documentation
Ordering Options Product Selection Technical Parameter Connection Diagram Dimensions

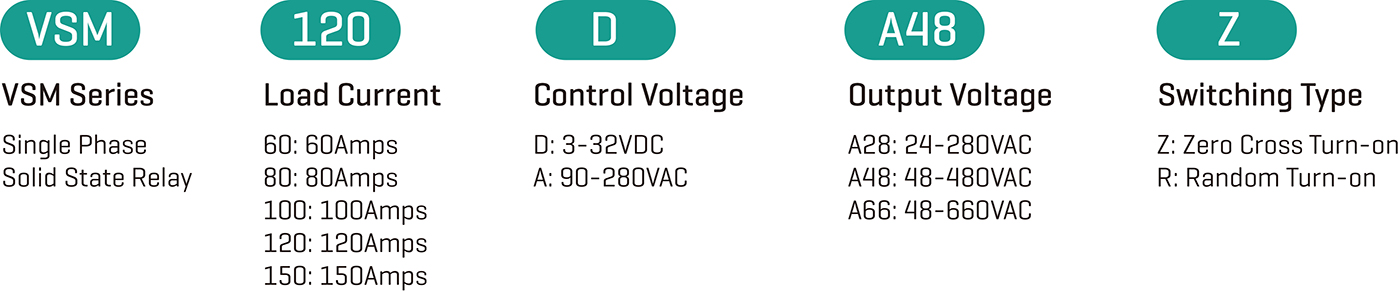

Ordering Options

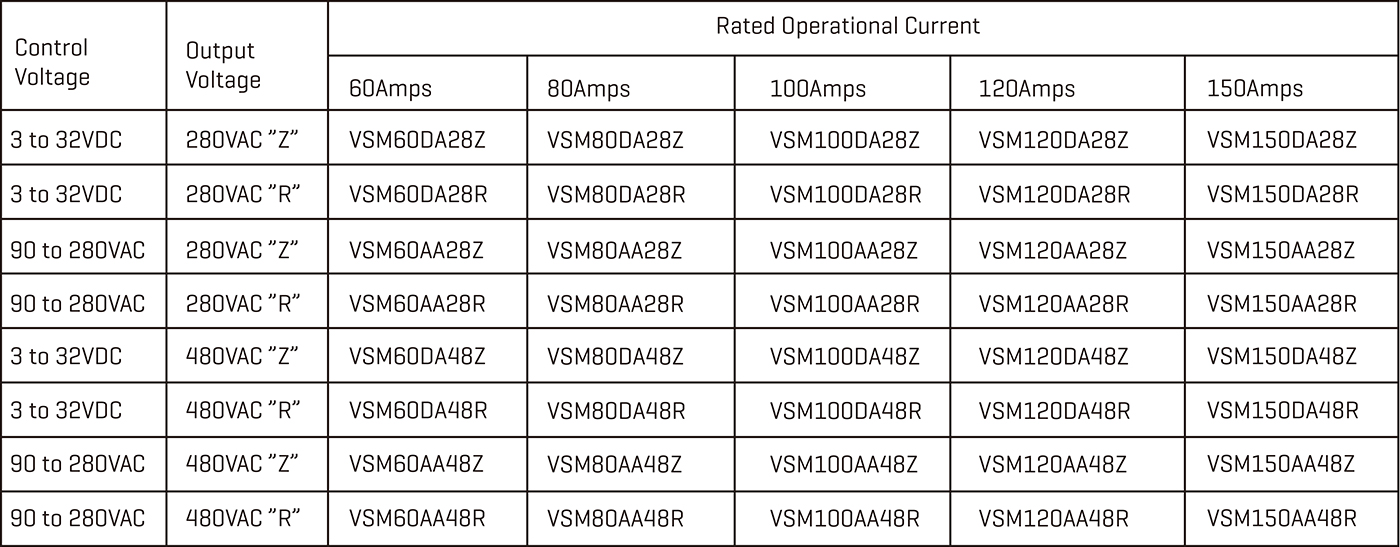

Product Selection


Technical Parameter

Input Specifications

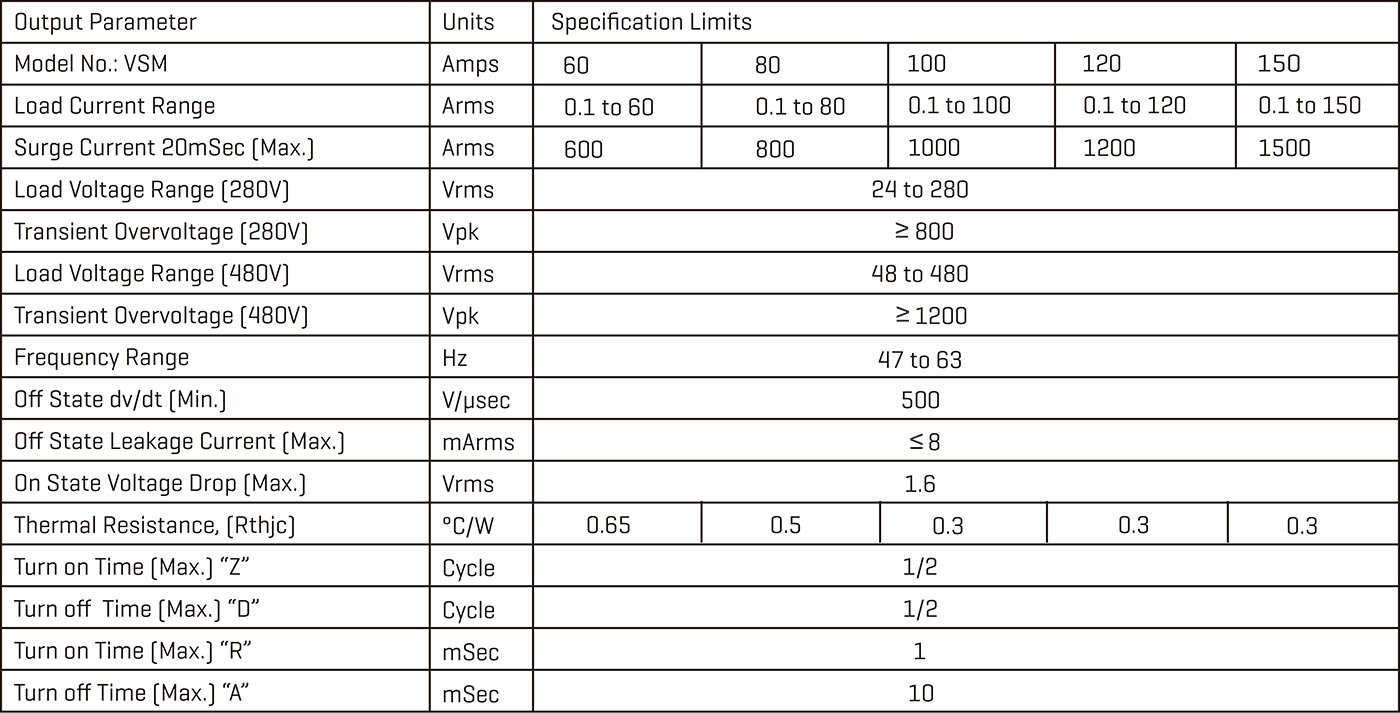

Output Specifications

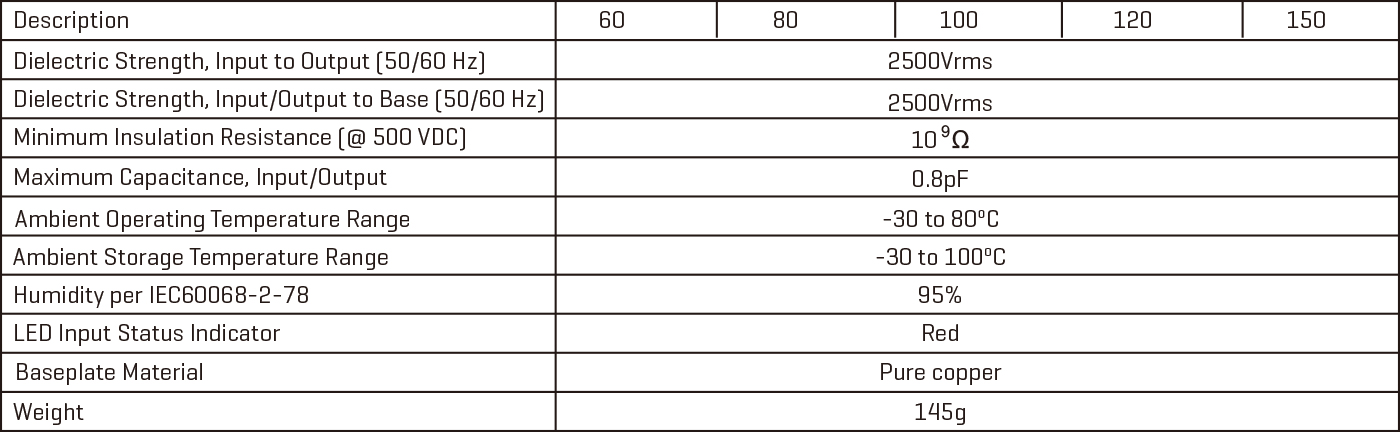

General Specifications (Ta=25°C)

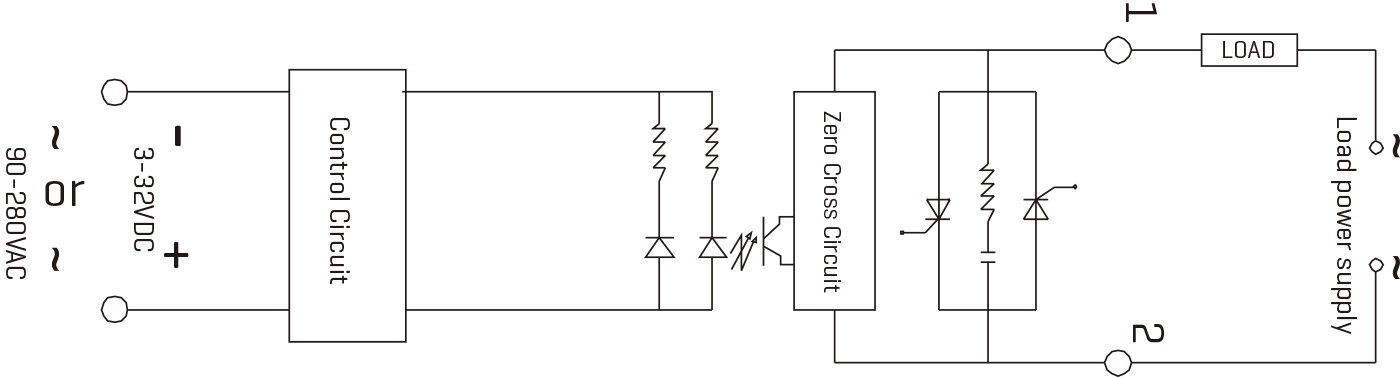

Connection Diagram

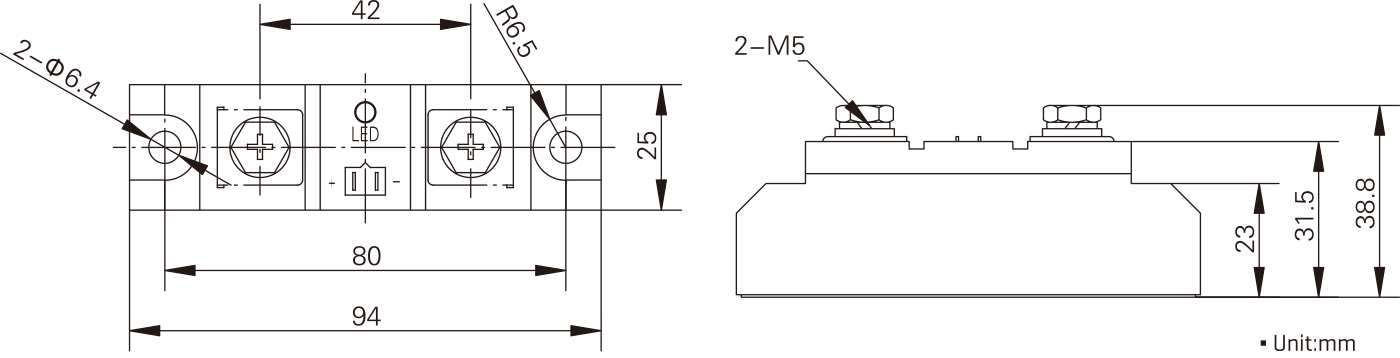

Dimensions
