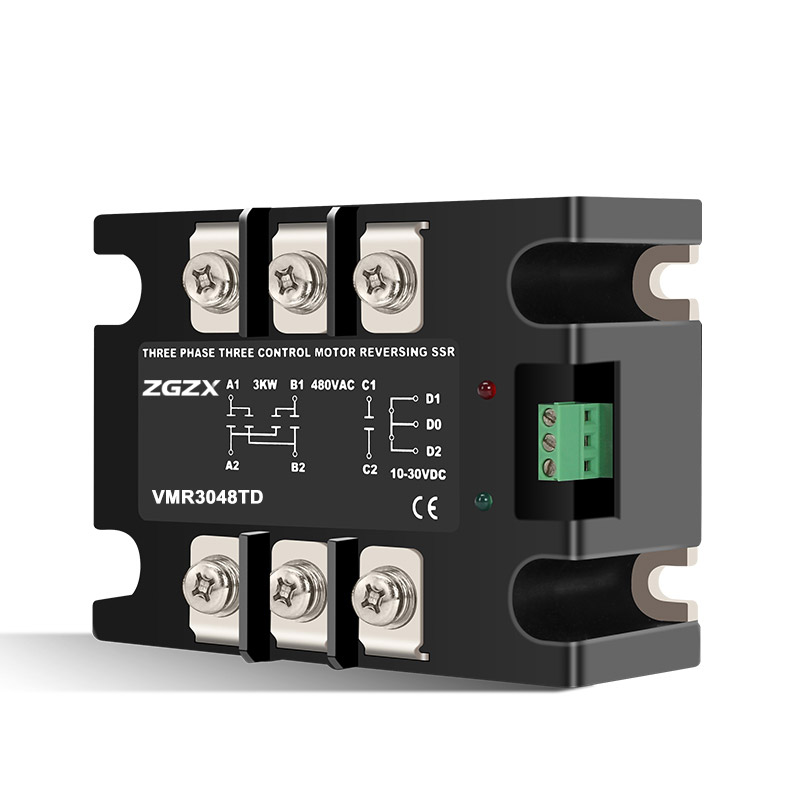

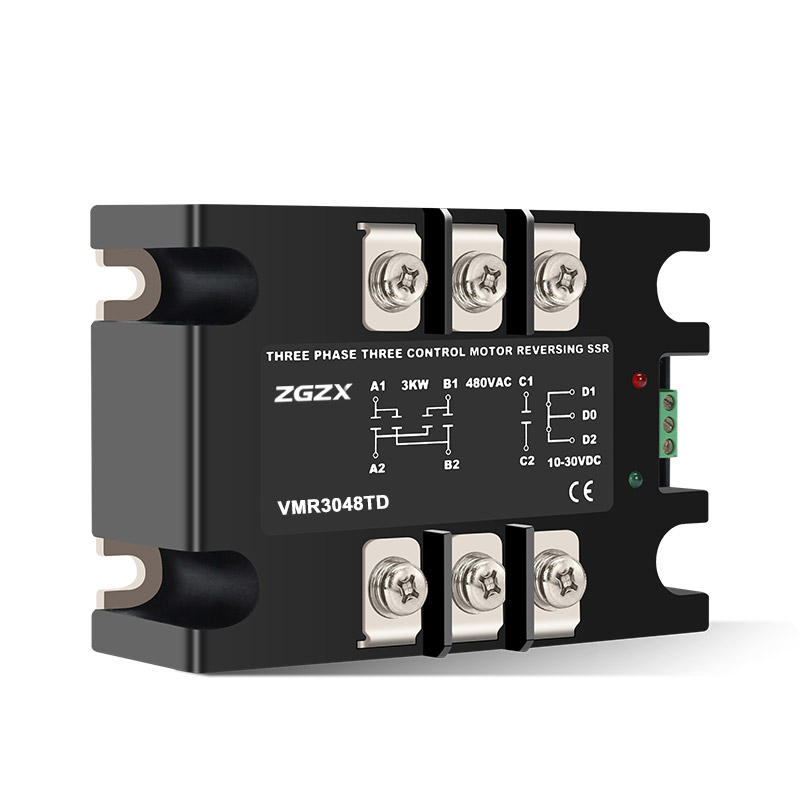

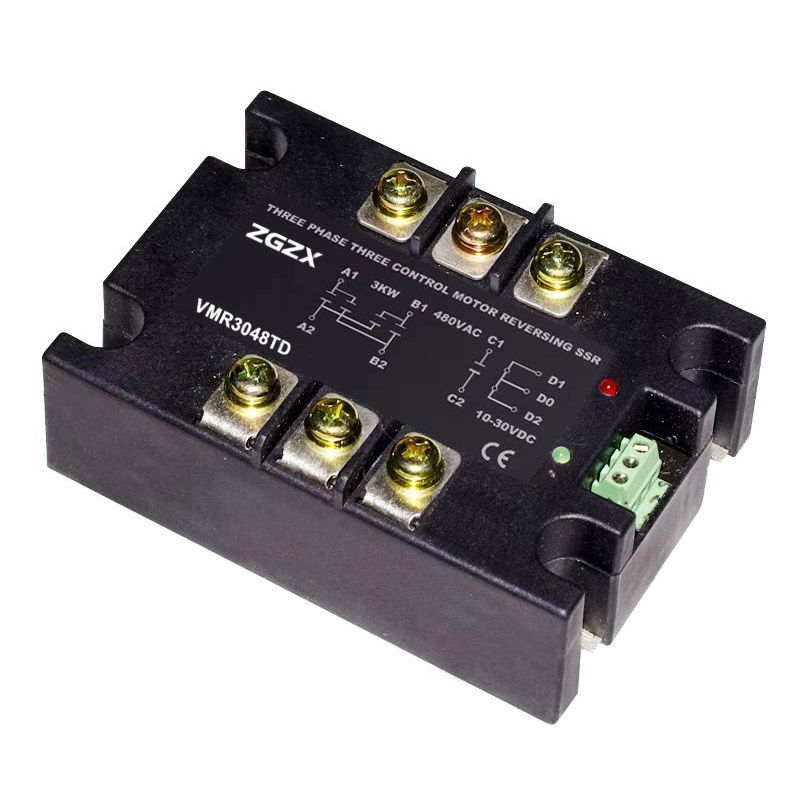

Motor reversing Solid State Relays for 3-phase industrial motors up to 7 KW.

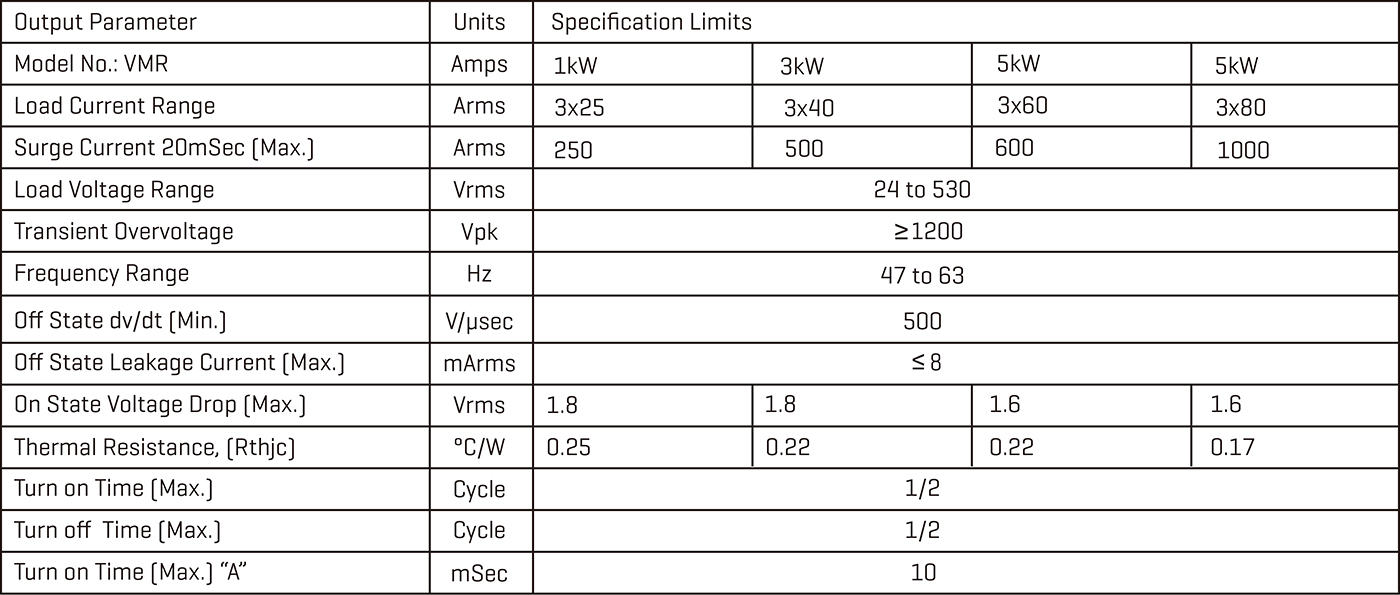

▪ Operational voltage: Up to 530VAC rms

▪ High performance /low cost circuit design.

▪ Built-in interlock function

▪ AC or DC control voltage

▪ LED indication for direction

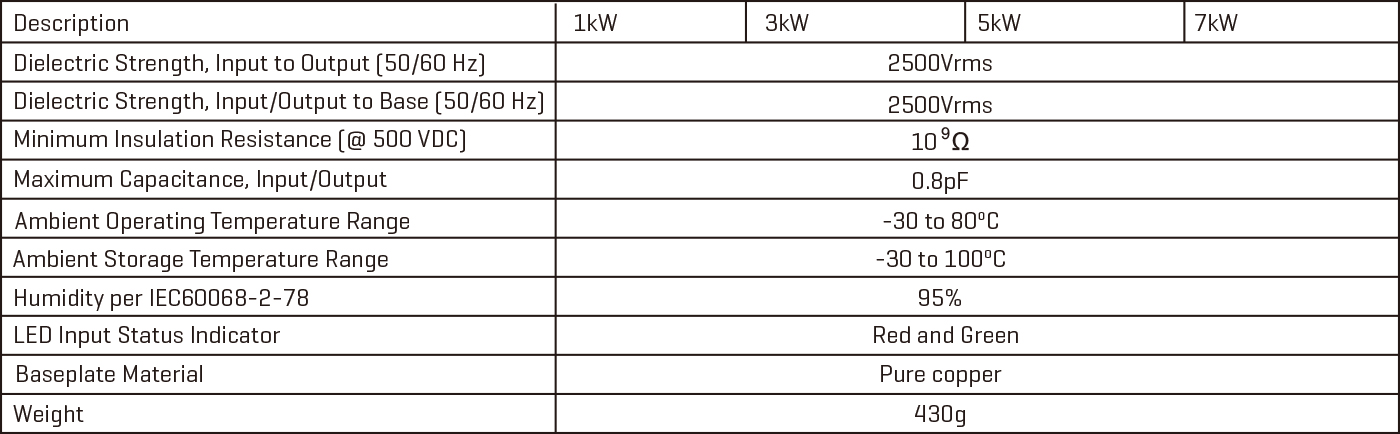

▪ Insulation: Reed relay or opt coupler (input-output)2500VAC rms

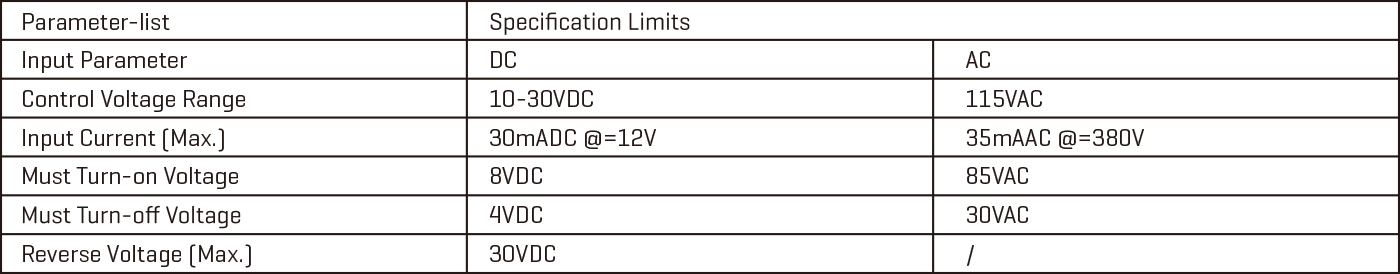

▪ Control voltage range:10~30 Vdc or 115 Vac

▪ This series with Dual SCR Power Hybrid technology provide highly efficient thermal

management for greatly increased cyclic life.
