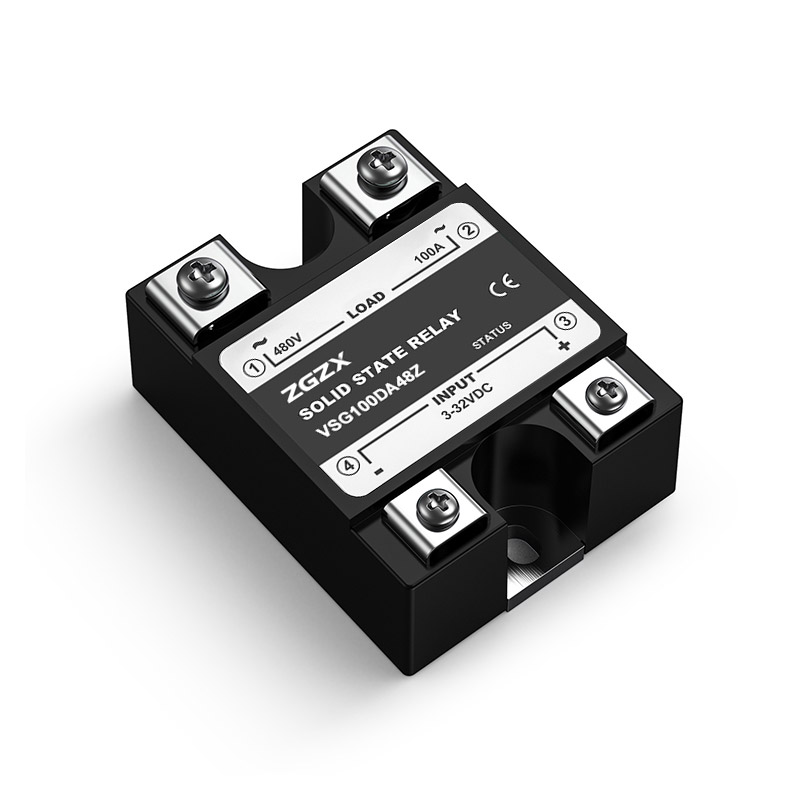

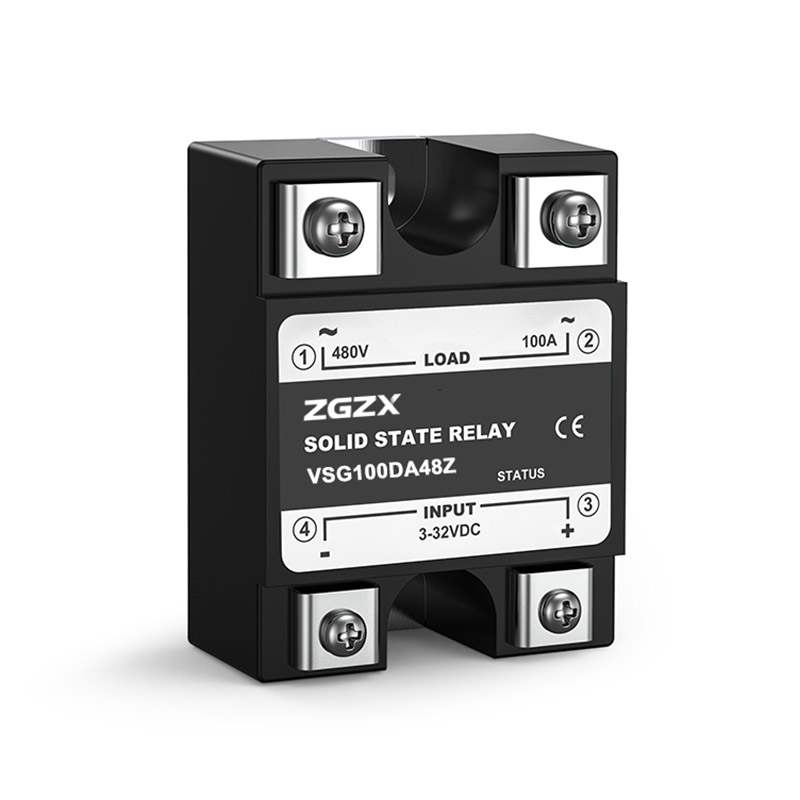

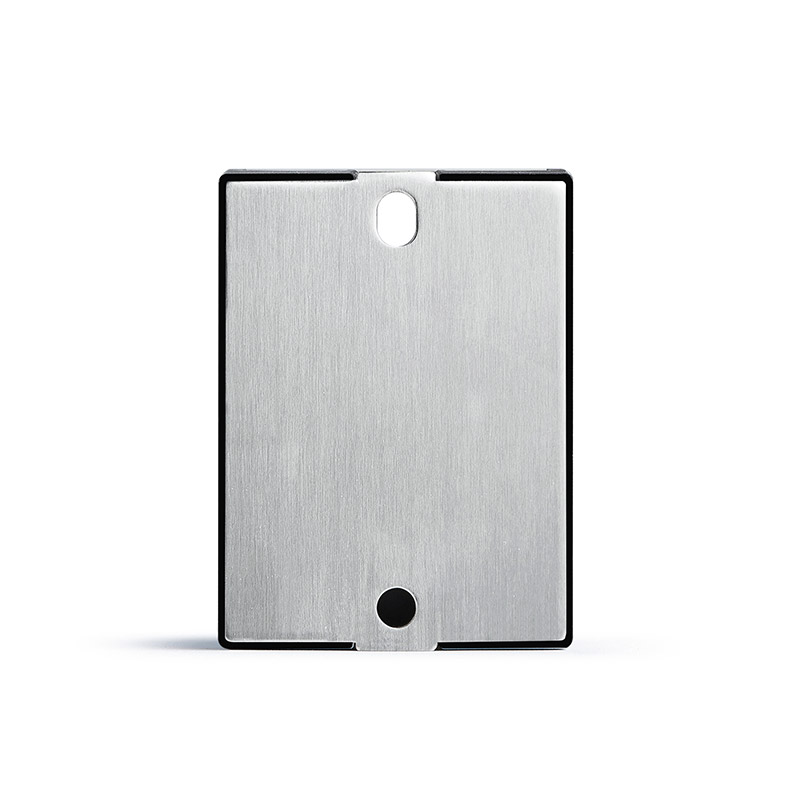

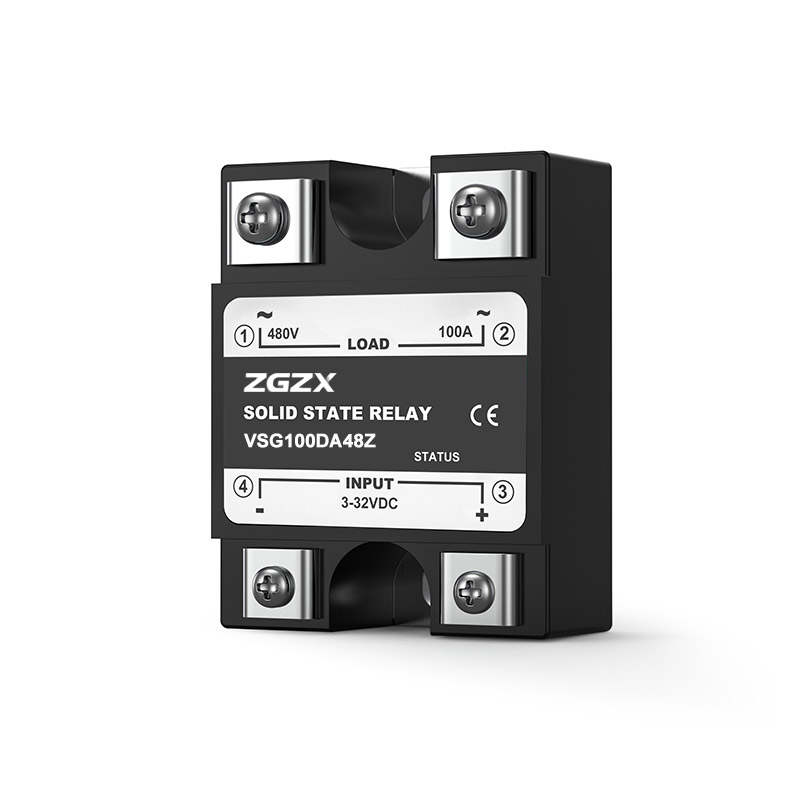

VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
VSG Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC

• Optical isolation between control loop and load loop

• Selectable zero-crossing output or random turn-on

• Internationally standardized installation dimensions

• LEDs indicate working status

• Built-in RC absorption circuit, strong anti-interference ability

• Epoxy resin potting, strong anti-corrosion and explosion-proof ability

• 3-32VDC or 90-280 VAC input control


View product introduction
I want to make an inquiryarrow Contact Support Staffarrow
Technical documentation
Ordering Options Product Selection Technical Parameter Connection Diagram Dimensions

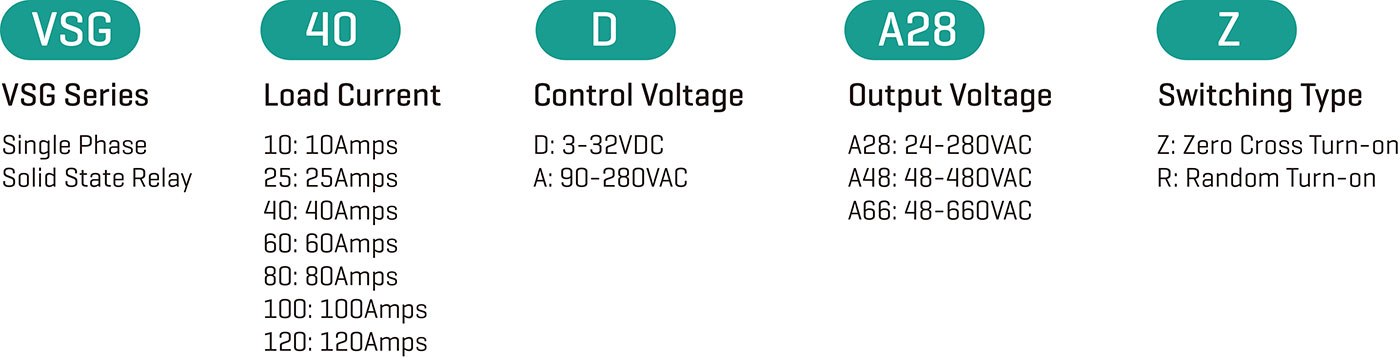

Ordering Options

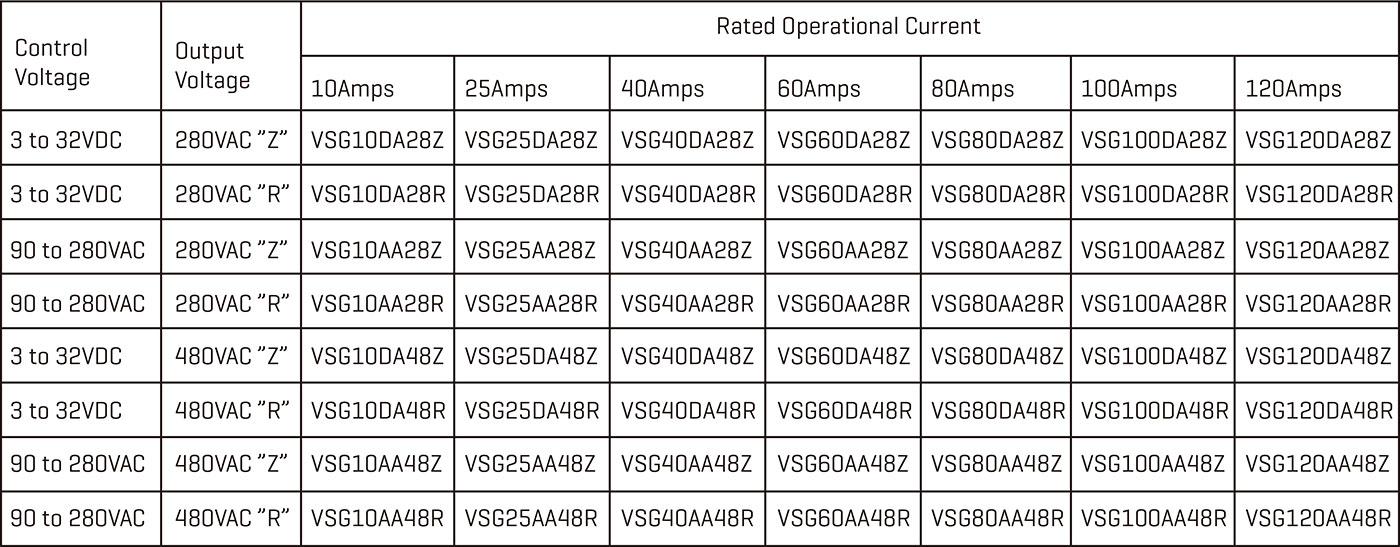

Product Selection


Technical Parameter

Input Specifications

Parameter-list

Specification Limits

Input Parameter

D

A

Control Voltage Range

3 to 32VDC

90 to 280VAC

Input Current (Max.)

13/16mADC @=5V/12V

30mAAC @=220V

Must Turn-on Voltage

3VDC

90VAC

Must Turn-off Voltage

1VDC

10VAC


Output Specifications

Output Parameter

Units

Specification Limits

Load Current

Amps

10A/25A/40A/60A/80A/100A/120A

Surge Current 20mSec (Max.)

Arms

85/230/400/600/800/1000/1200

Load Voltage Range (280V)

Vrms

24 to 280

Transient Overvoltage (280V)

Vpk

≥800

Load Voltage Range (480V)

Vrms

48 to 480

Transient Overvoltage (480V)

Vpk

≥1200

Frequency Range

Hz

47 to 63

Off State dv/dt (Min.)

V/μsec

500

Off State Leakage Current (Max.)

mArms

≤8

Turn on Time (Max.) “Z”

Cycle

1/2

Turn off Time (Max.) “D”

Cycle

1/2

Turn on Time (Max.) “R”

mSec

1

Turn off Time (Max.) “A”

mSec

10


General Specifications (Ta=25°C)

Description

Specification Limits

Dielectric Strength, Input to Output (50/60 Hz)

4000Vrms

Dielectric Strength, Input/Output to Base (50/60 Hz)

2500Vrms

Ambient Operating Temperature Range

-30 to 80ºC

Ambient Storage Temperature Range

-30 to 100ºC

LED Input Status Indicator

Red

Baseplate Material

Pure copper

Weight

150g

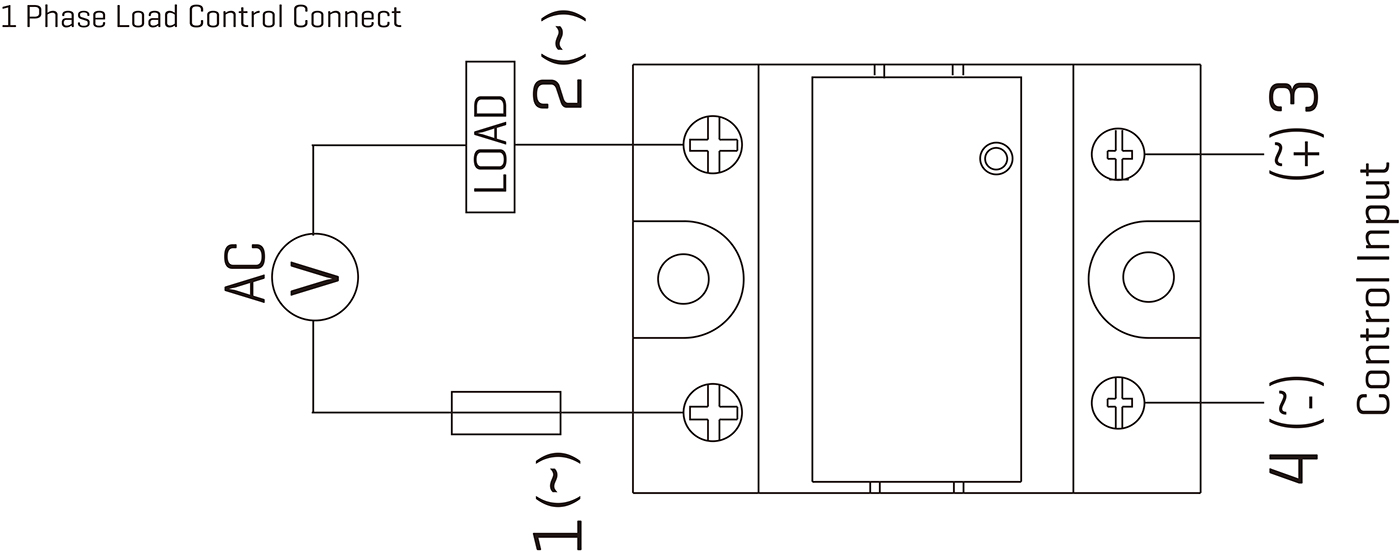

Connection Diagram

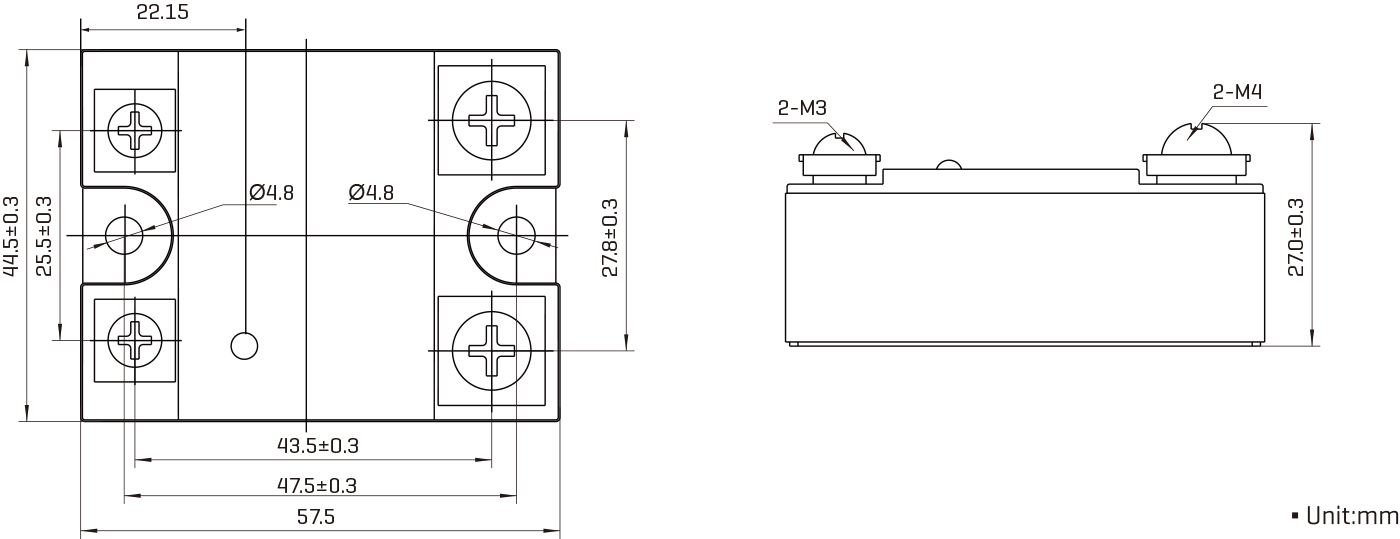

Dimensions
