Home > Product > Single Phase Solid State Relay > SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
view all

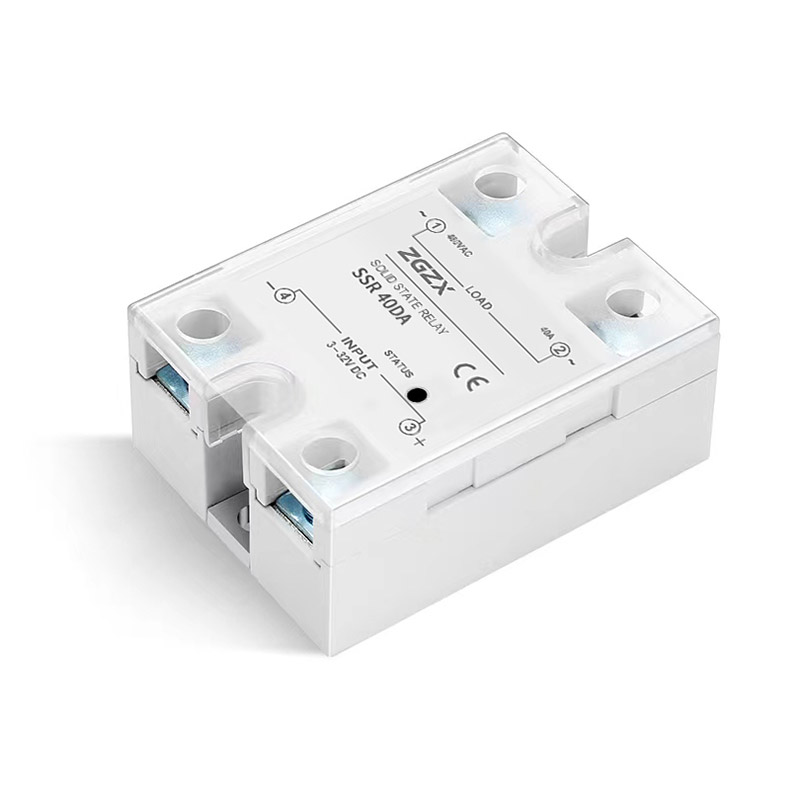

SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC
SSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-480VAC

• Photoelectric isolation between control circuit and load circuit
• Zero-crossing output or random turn-on can be selected
• Internationally standardized installation size
• LED indicates working status
• Built-in RC absorption circuit, strong anti-interference ability
• Epoxy resin potting, anti-corrosion and explosion-proof ability Strong
• DC 3-32VDC or AC 90-280VAC input control

View product introduction
I want to make an inquiryarrow Contact Support Staffarrow
Technical documentation
Ordering Options Product Selection Technical Parameter Connection Diagram Dimensions

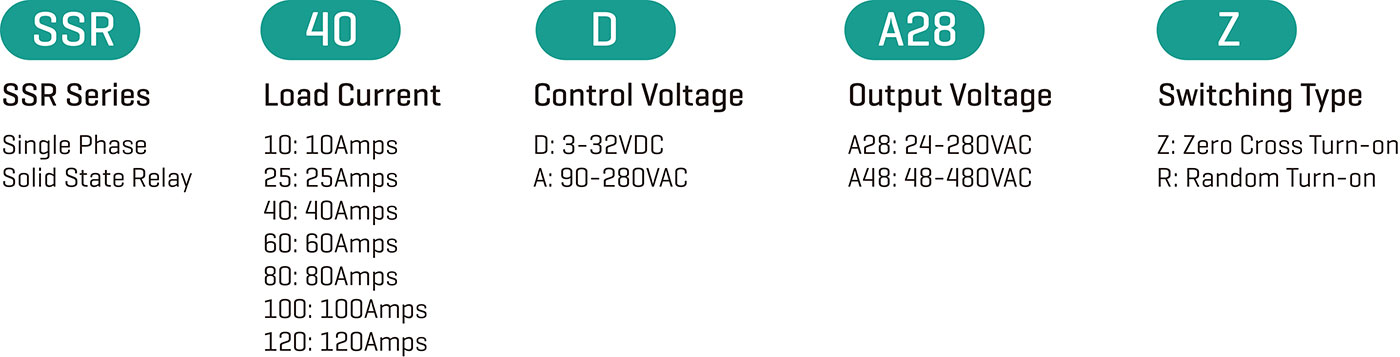

Ordering Options

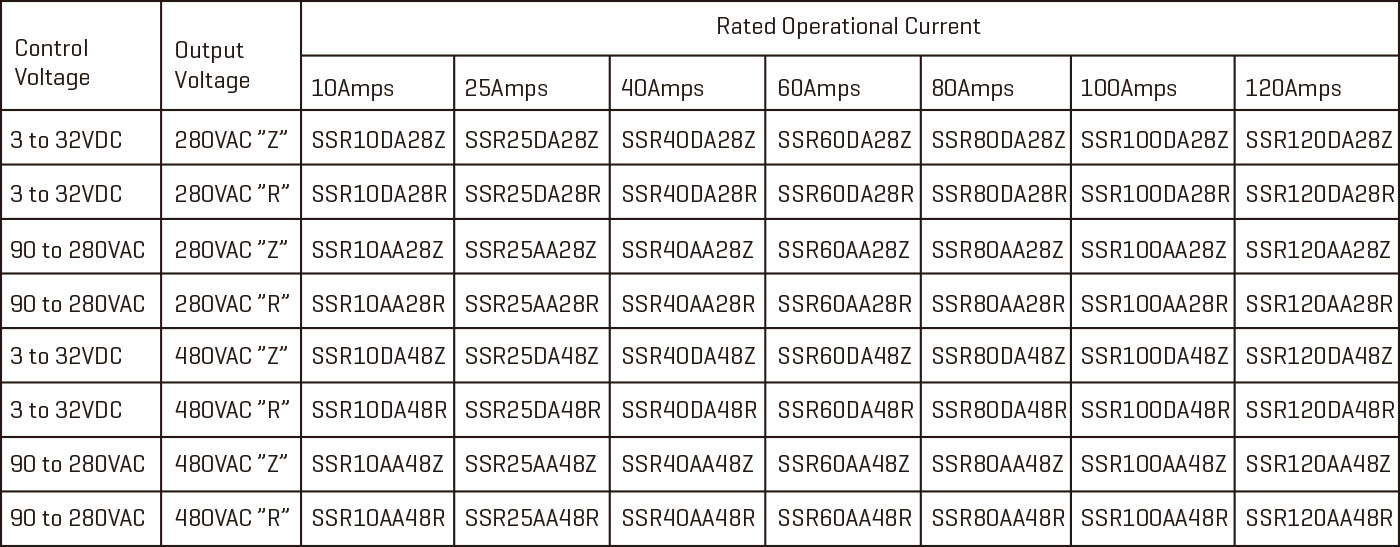

Product Selection


Technical Parameter

Input Specifications

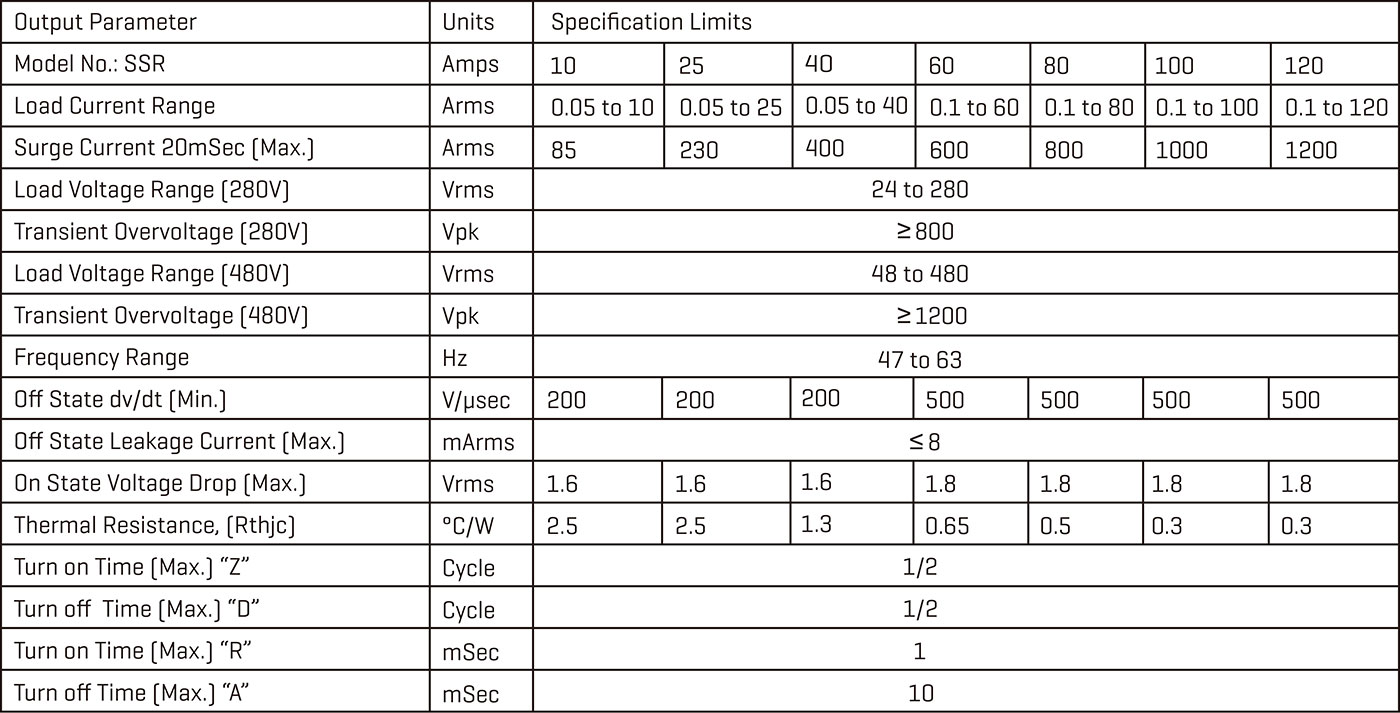

Output Specifications

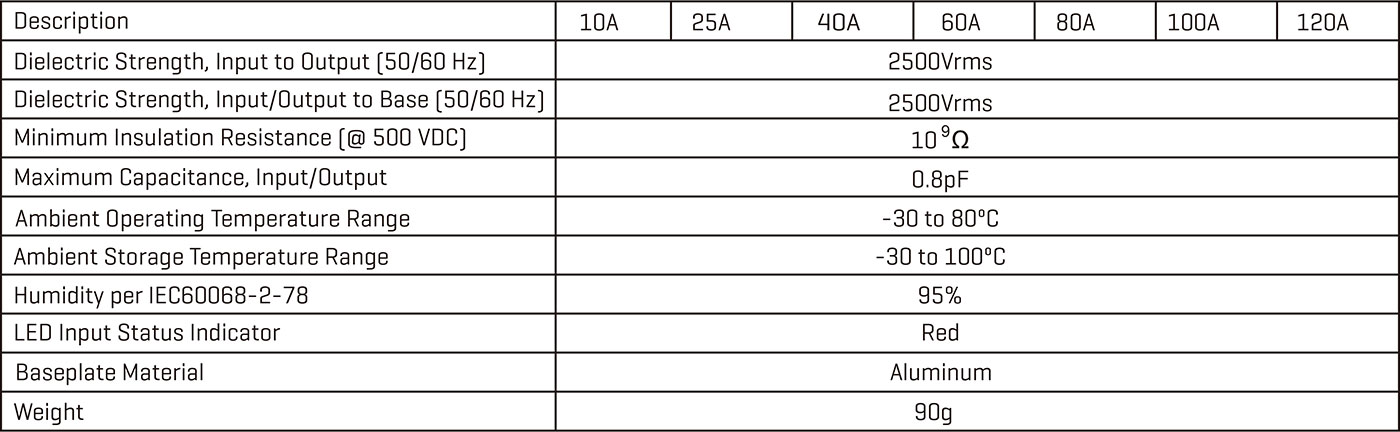

General Specifications (Ta=25°C)

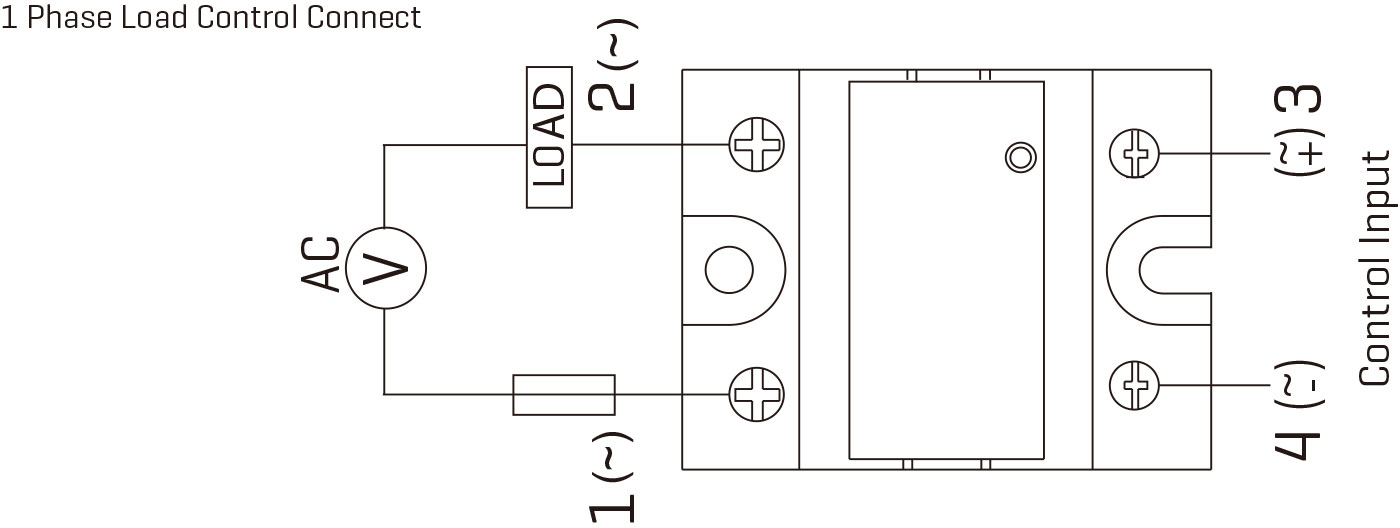

Connection Diagram


Dimensions
