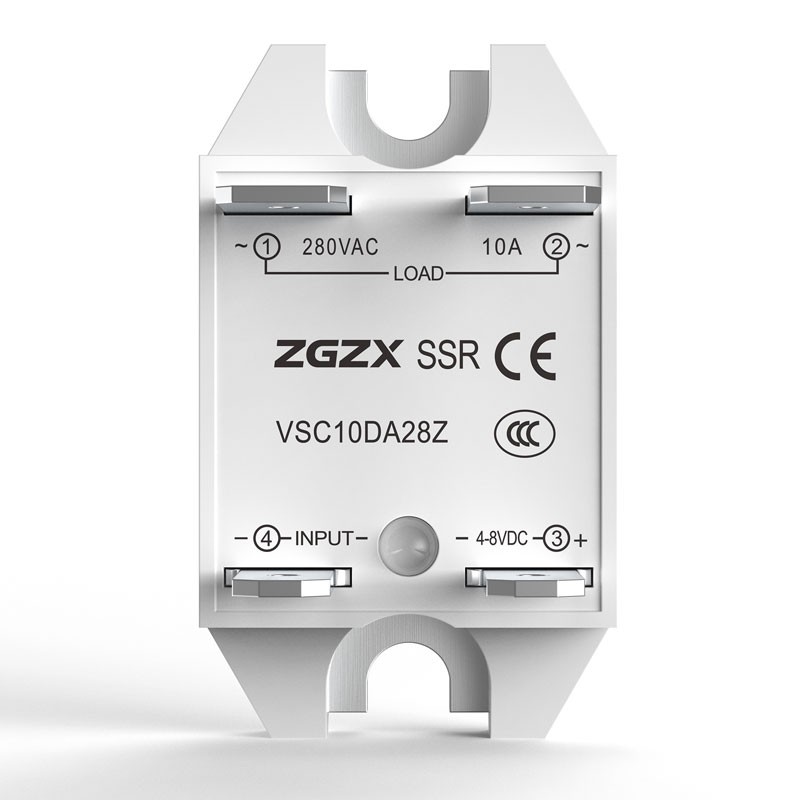

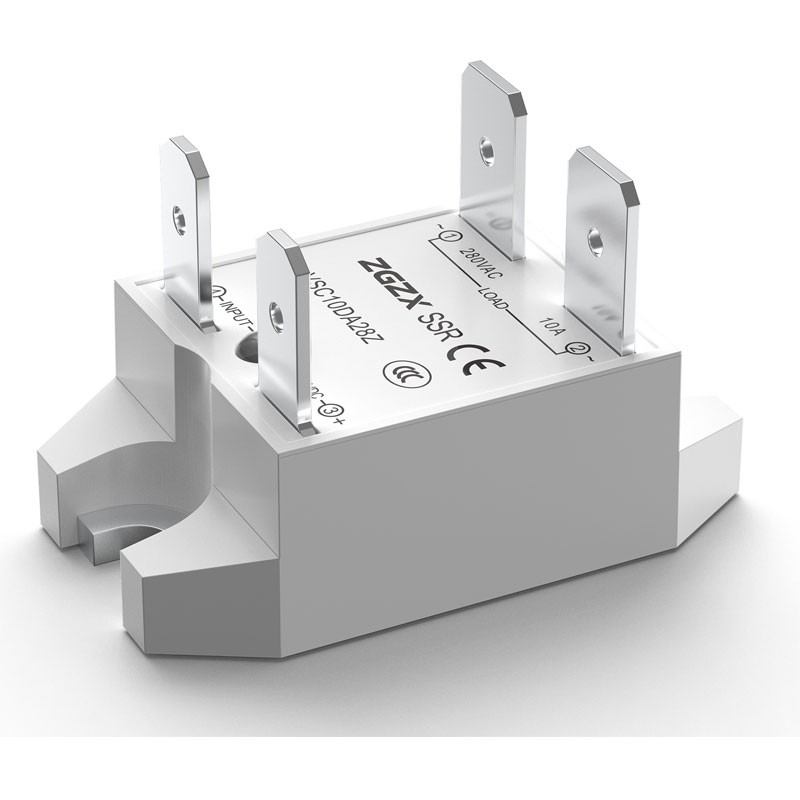

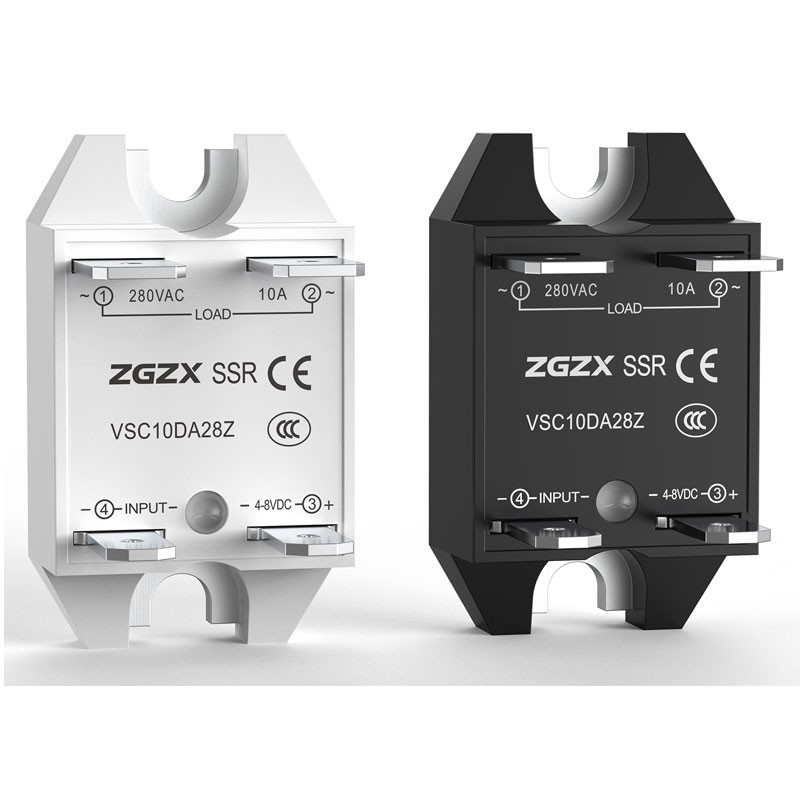

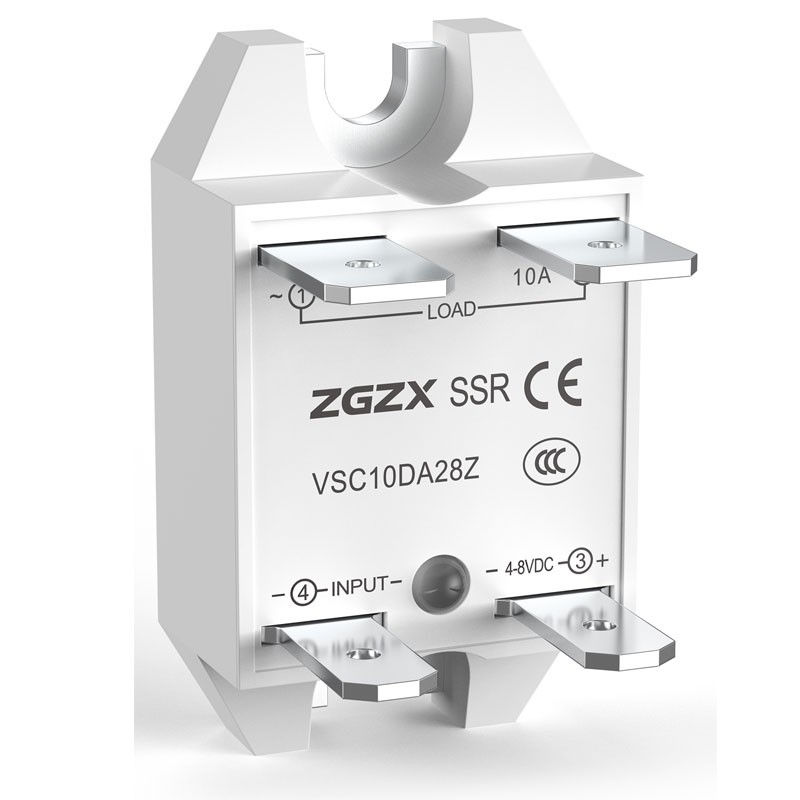

VSC Series AC output solid state relays come in a compact, 21mm x 35mm housing and offer ratings up to 25 Amps

Rating of 10A, 15A and 25A@24-280VAC.

Zero voltage or instantaneous turen-on outputs.

Easy-to-use:Fast-on connection.

LED input status indicator.

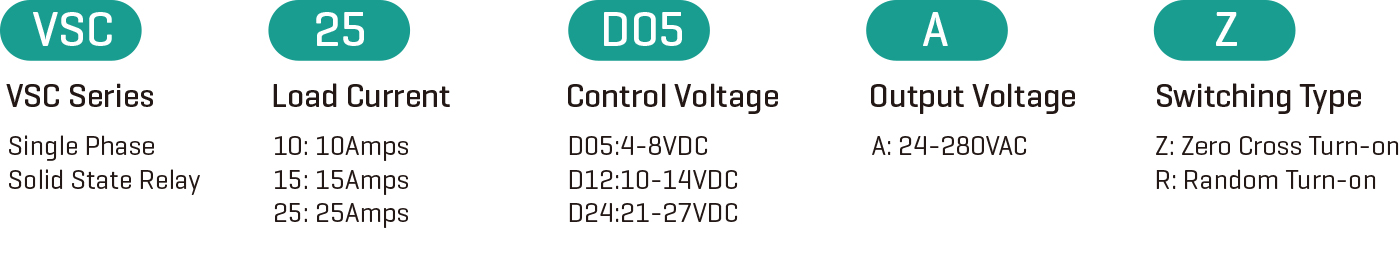

Ordering Options

Product Selection

Technical Parameter

Input Specifications

Output Specifications

Description	10Amps	15Amps	25Amps
Operating voltage (47-63Hz)(Vrms)	24-280	24-280	24-280
Maximum load current (A)	10A	15A	25A
Minimum load current (mArms)	150	150	250
Transient overvoltage (Vpk)	600	600	600
Maximum surge current (50/60Hz,1Cycle) (Apk)	145/150	185/220	260/280
Maximum IÇt for fusing (50/60Hz,1/2Cycle) (AÇsce)	100/95	165/160	338/326
Minimum off-state dv/dt@Maximum rated voltage (V/μsec)	500	500	500
Maximum off-state leakage current@rated voltage(mArms)	0.1	0.1	0.1
Thermal resistance junction to case(Rjc)(°C/W)	3.0	2.2	0.9
Maximum on-state voltage drop @rated current (Volts)	1.3	1.3	1.3
Minimum power factor (at maximum load)	0.7	0.7	0.7

General Specifications

Descriptio	Parameters
Dielectric Strength, Input to Output (50/60Hz	2500 Vrms
Dielectric Strength, Output to Baseplate (50/60Hz	2500 Vrms
Maximum Capacitance, Input/Output	8 pF
Ambient Operating Temperature Range	-30 to 80°C
Ambient Storage Temperature Range	-30 to 125 °C
Weight (typical)	16g
Terminals	3/16”x 0.032”input, 1/4”x 0.032”output QC
SSR Mounting Screw Torque Range	9.0-10.0 in-lb (1.0-1.13 Nm)
LED Input Status Indicator	Red
Humidity per IEC60068-2-78	93% non-condensing

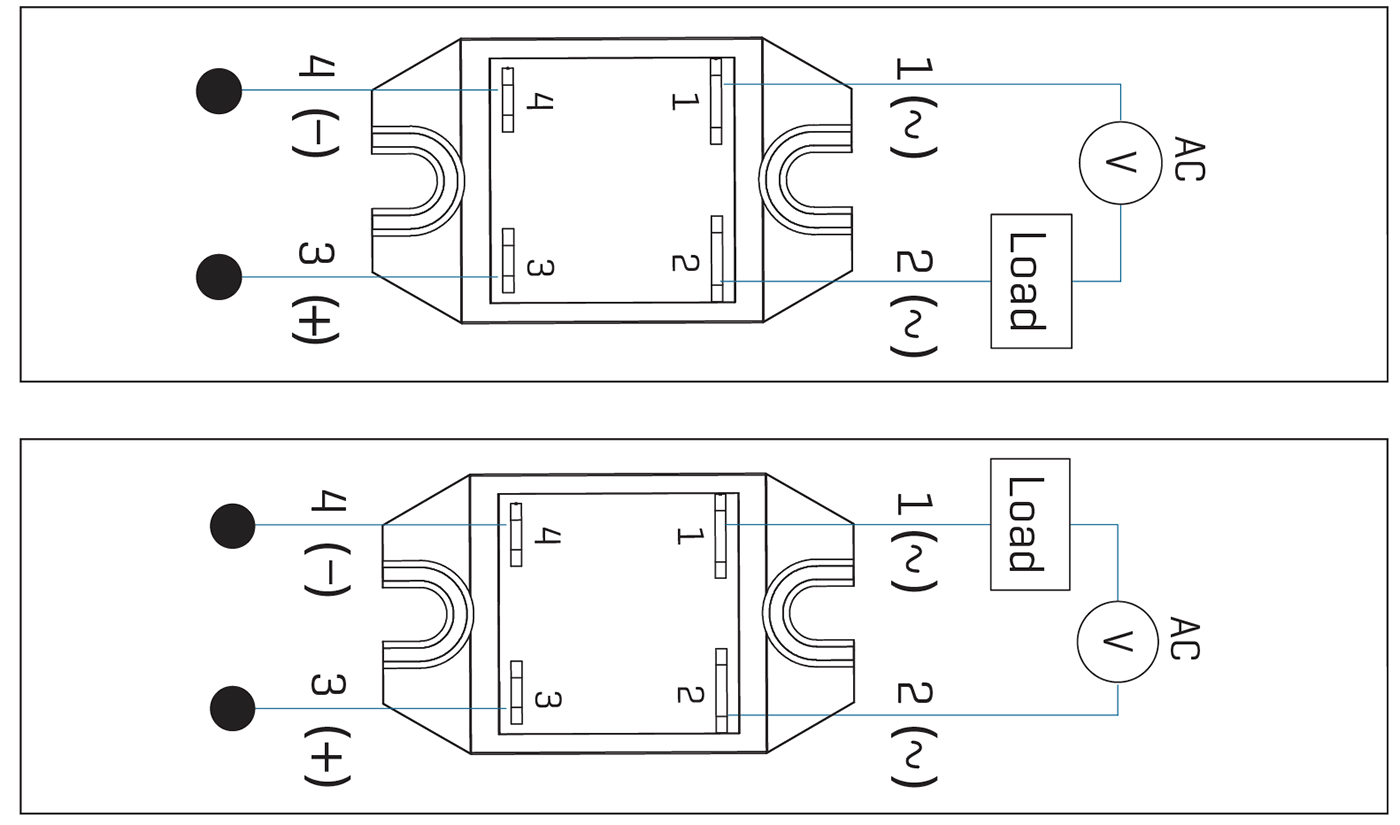

Connection Diagram

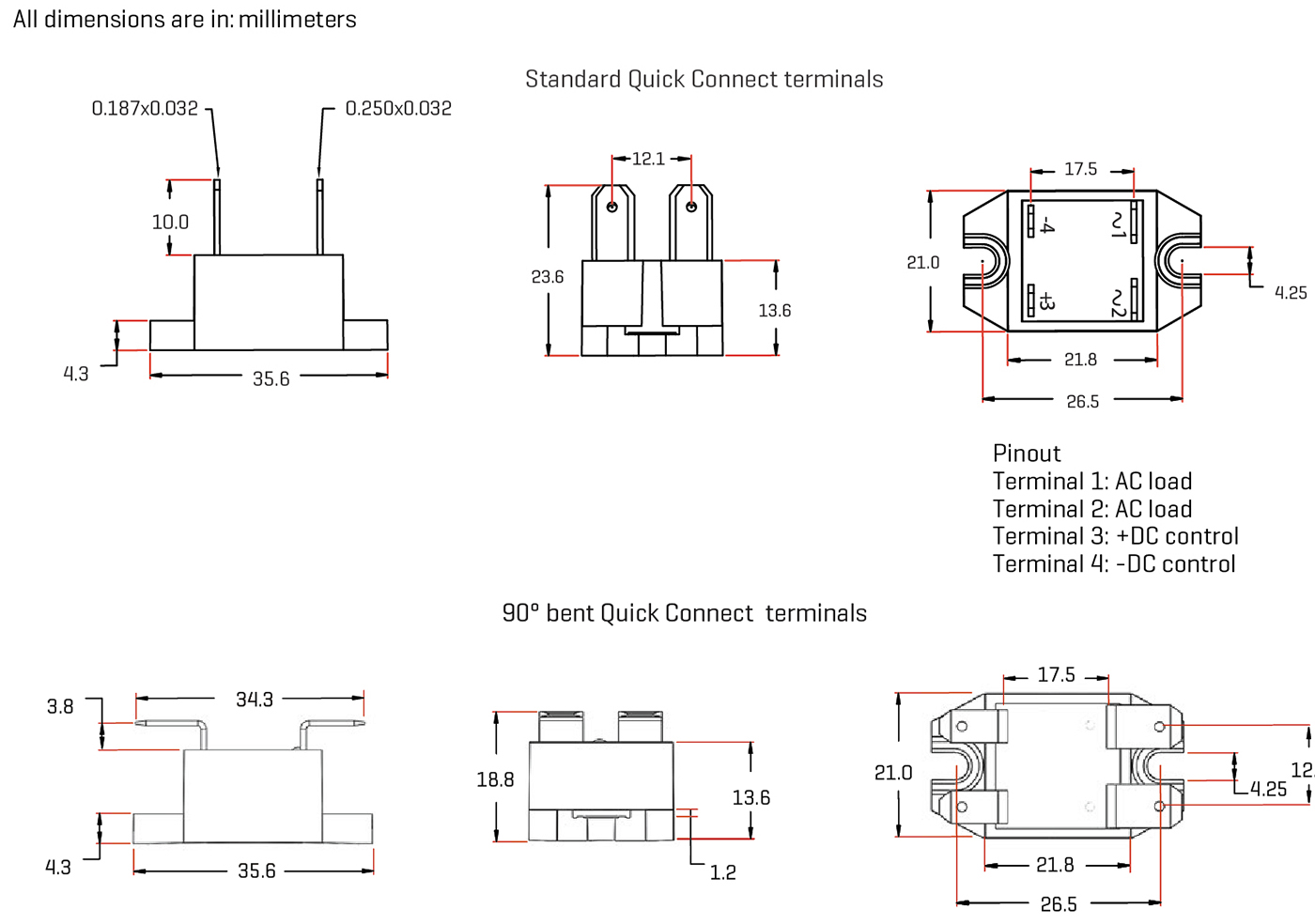

Dimensions
