Home > Product > Single Phase Solid State Relay > VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
view all

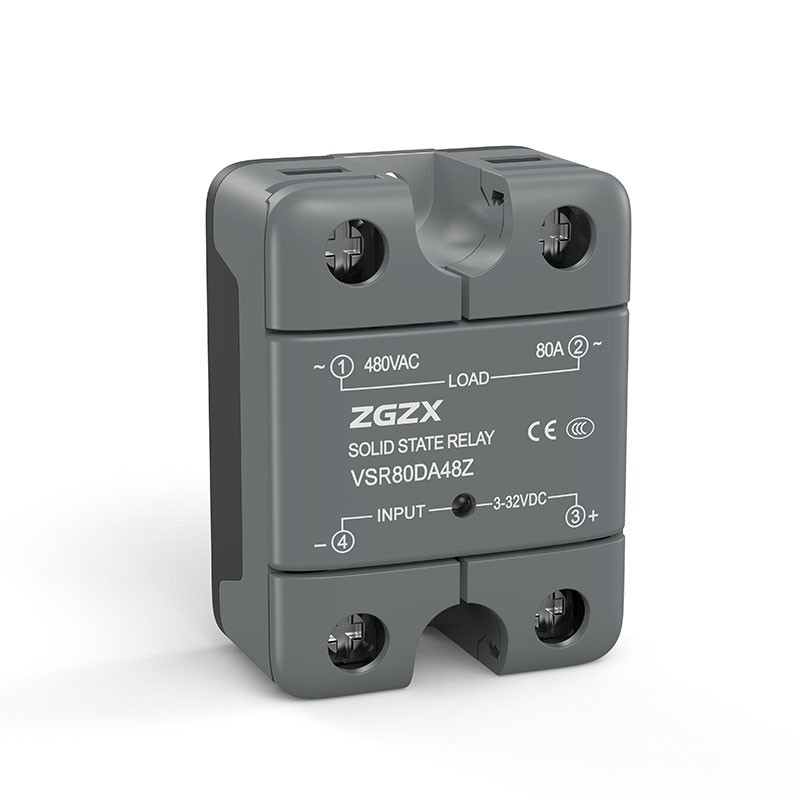

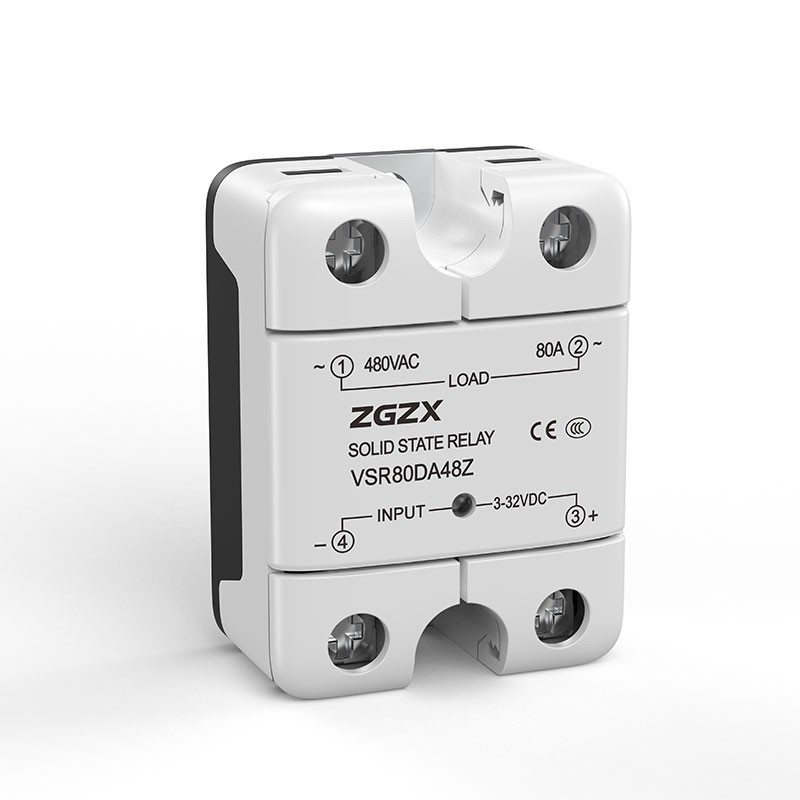

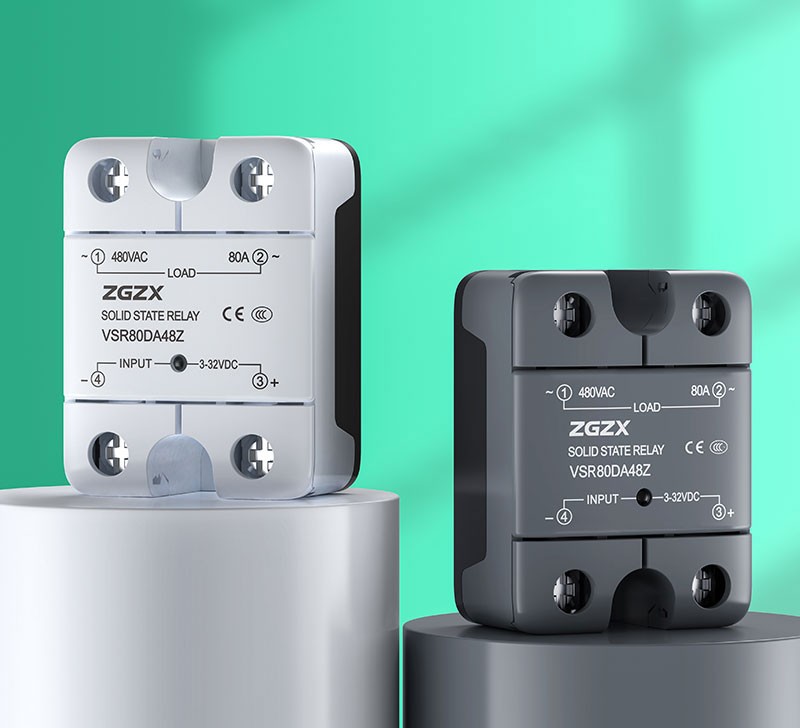

VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC
VSR Series Single Phase Solid State Relays DC control AC solid state relay, input 3-32VDC, input with LED indication, output current capacity 10A-120A, output voltage 48-660VAC

n Rating of 15A,25A, 40A,60A,80A,100A and 120A.

n Output voltage of 24-280VAC, 24-480VAC and 48-660VAC

n Control voltage of 3-32VDC, 18-36VAC/DC,20-265VAC/DC and 90-280VAC.

n Zero Crossing or Random-on Switching.

n Integrated IP20 touch-safe removable covers.

n Dielectric Strength 4000VACrms.

n LED input status indicator.


View product introduction
I want to make an inquiryarrow Contact Support Staffarrow
Technical documentation
Ordering Options Product Selection Technical Parameter Connection Diagram Dimensions

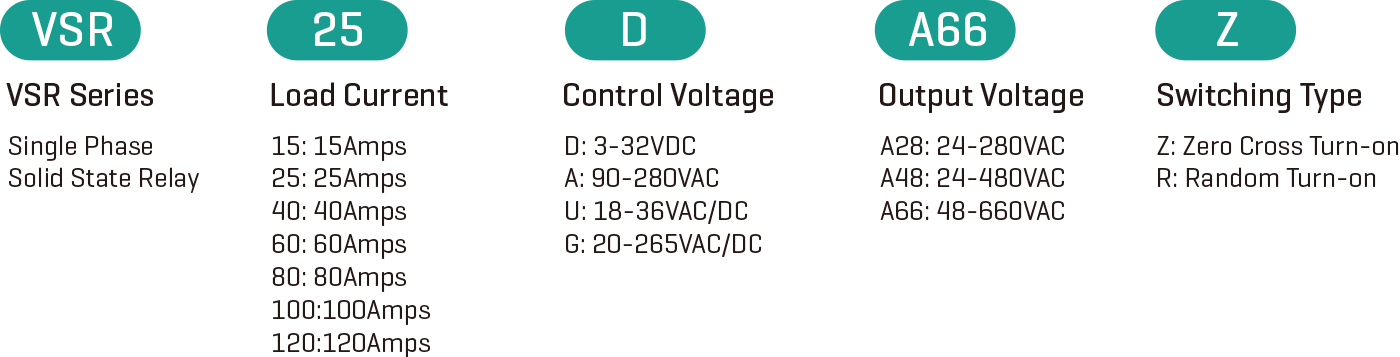

Ordering Options

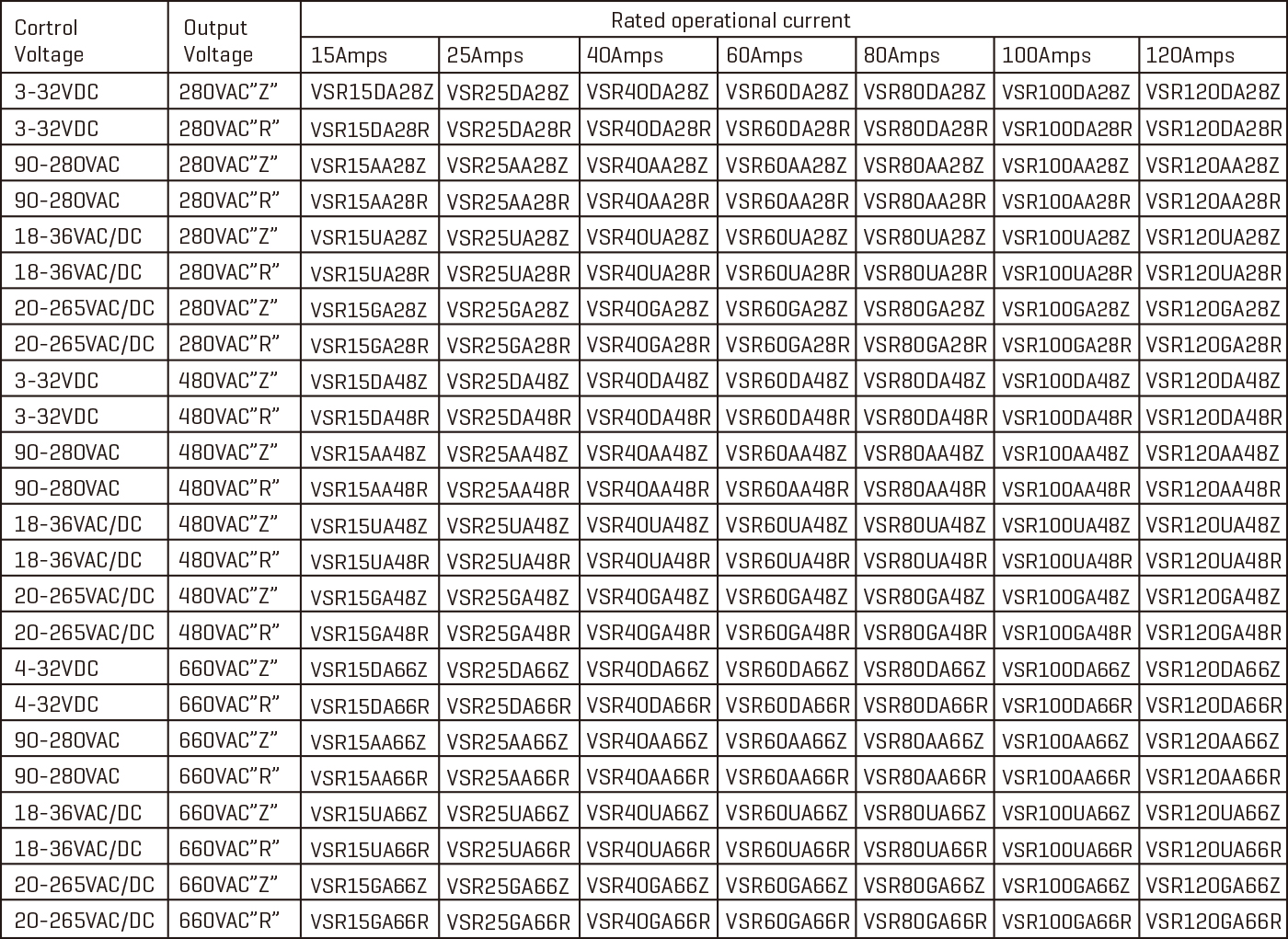

Product Selection


Technical Parameter

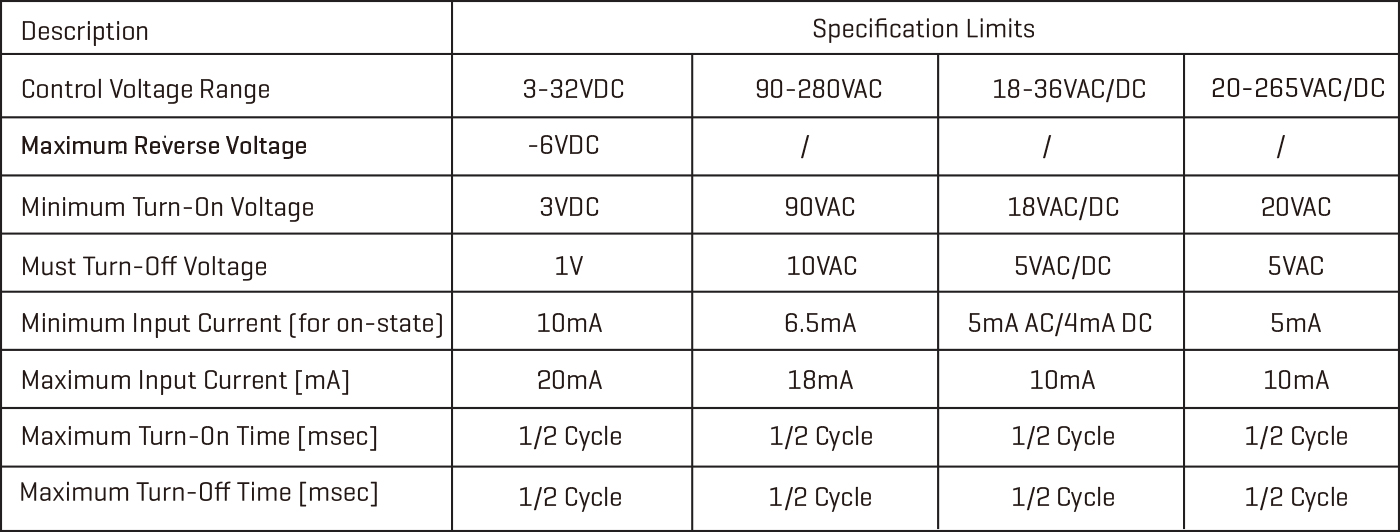

Input Specifications

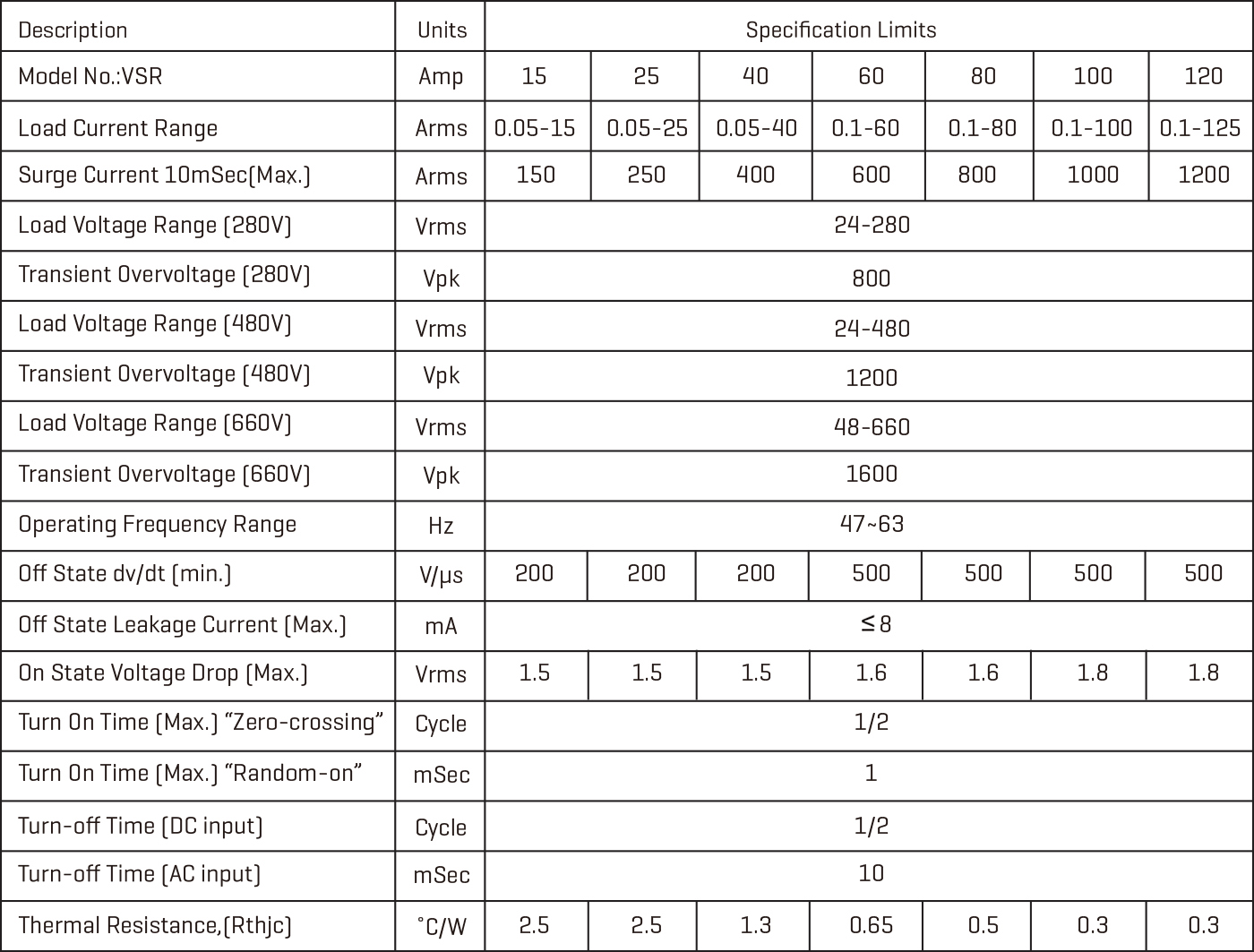

Output Specifications

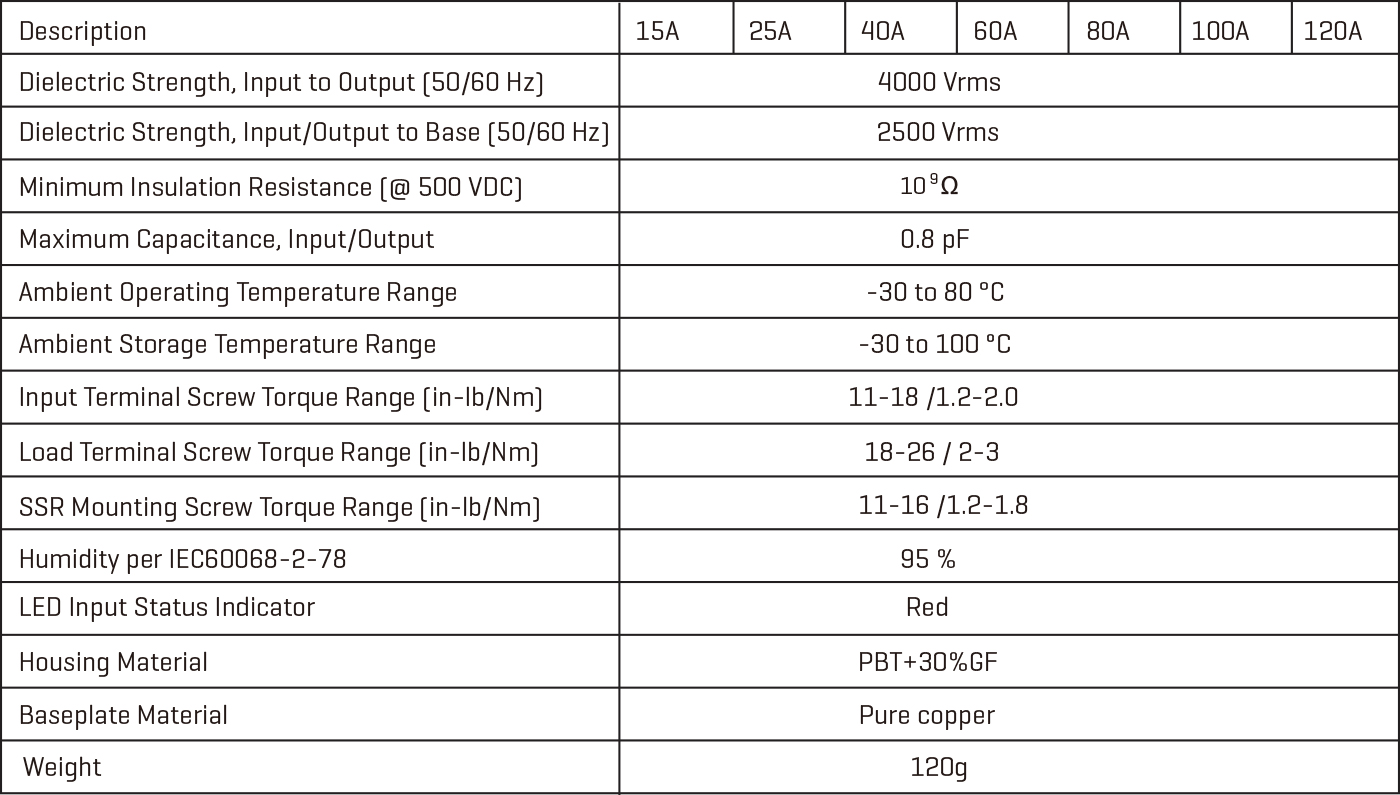

General Specifications (Ta=25°C)

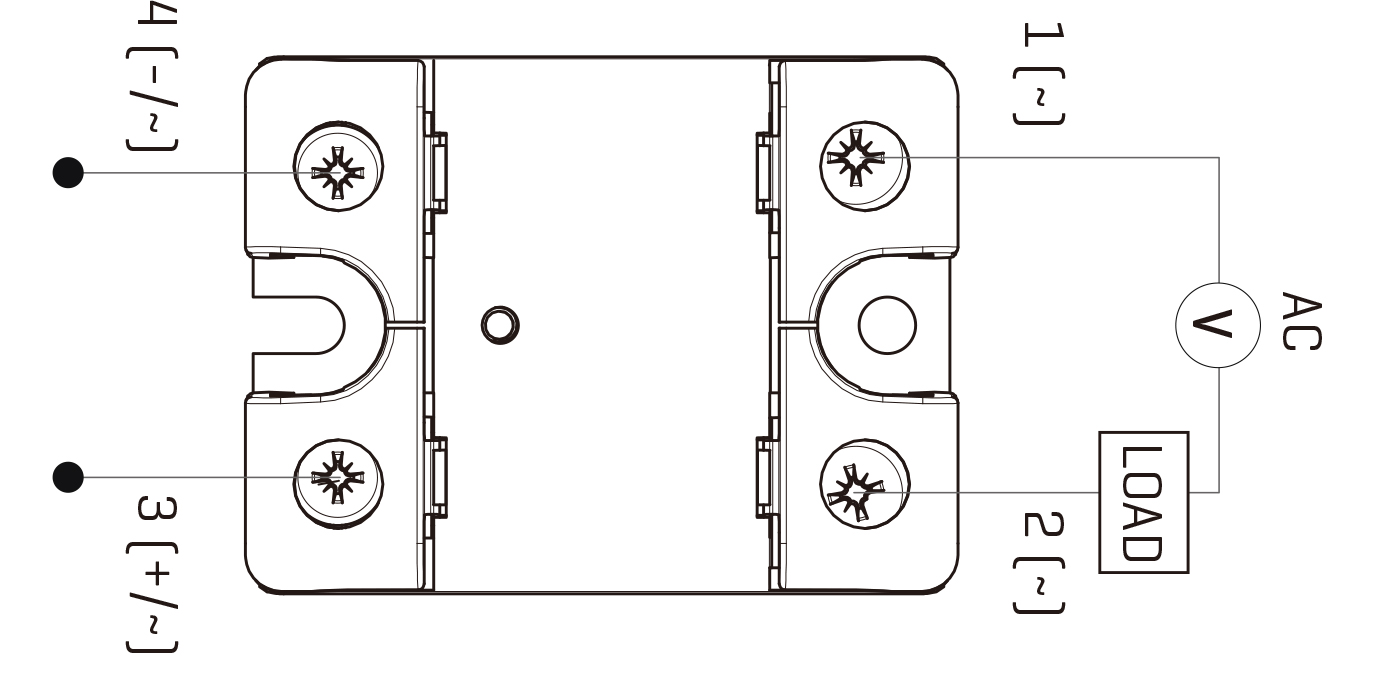

Connection Diagram

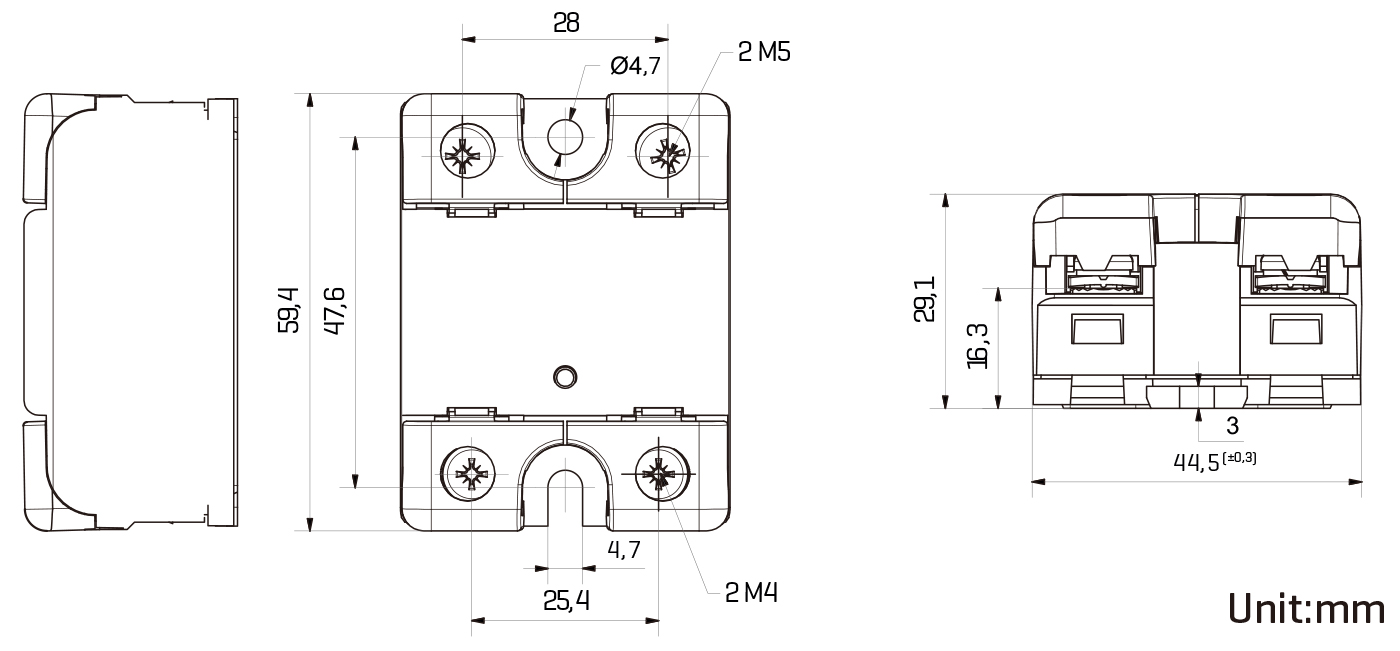

Dimensions


Submit an inquiry
